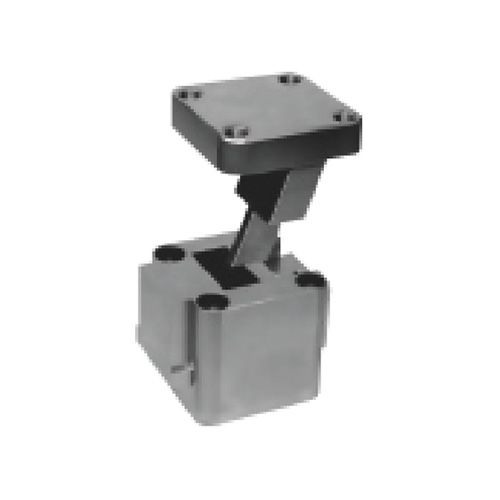

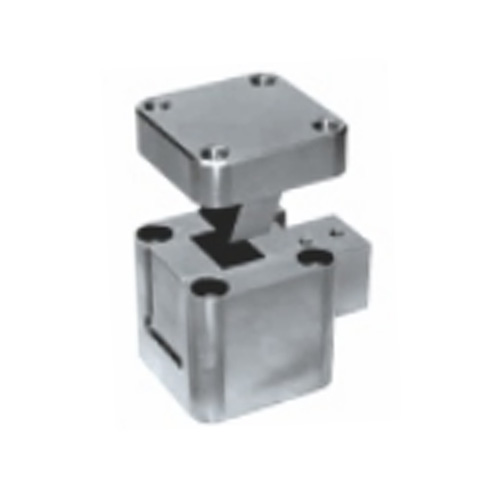

ZZ4294 Slide Core Units For Plastic Injection Mold
  • ZZ4294 Slide Core Units For Plastic Injection Mold
  • ZZ4294 Slide Core Units For Plastic Injection Mold
  • ZZ4294 Slide Core Units For Plastic Injection Mold

ZZ4294 Slide Core Units For Plastic Injection Mold

Introducing our Slide Core Units for Plastic Injection Mold, a reliable and efficient solution designed to enhance the performance and functionality of your molds. Crafted with precision and utilizing high-quality materials, these core units are engineered to meet the demands of modern manufacturing processes.
Material and Hardness:
Our Slide Core Units are constructed using SKD61 material, renowned for its durability and resistance to wear. With a hardness of 52±2HRC, these units exhibit good strength and longevity, ensuring prolonged and reliable use in demanding molding applications.
Features:
Lengthening Stroke:

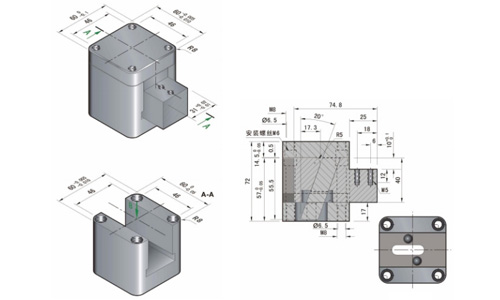

The Slide Core Units boast an extended stroke capability, reaching a improve stroke of 17.3mm. This extended stroke provides increased flexibility in mold design, allowing for the accommodation of diverse product specifications and intricate mold geometries.
Double Wave Pearl Structure Locking Slide Block:
Adopting a double wave pearl structure for the locking slide block, our Slide Core Units excel in preventing unexpected movements. This design feature ensures that the slide block remains securely in place, preventing misalignment and potential damage during the molding process.
Well-Knit Structure:
The units are characterized by a well-knit structure, optimizing space utilization within the mold. This compact design not only saves valuable room but also contributes to the reduction of the overall mold size. As a result, our Slide Core Units enable efficient and space-conscious mold configurations.
Easy Installation and Maintenance:
Designed with user convenience in mind, our Slide Core Units are easy to install, streamlining the integration process into your existing molds. The simplicity of installation enhances operational efficiency, reducing downtime during mold setup or reconfiguration. Additionally, these units are convenient to maintain, ensuring smooth and trouble-free performance throughout their operational lifespan.
Installation Guidelines:
Customer Processing for Slide Core Position:
To accommodate the specific requirements of your mold, the position of the slide core necessitates customer processing. This customization feature allows for the precise integration of the Slide Core Units into your molds, aligning with the unique specifications of your plastic injection molding applications.
Lubrication for Movable Parts:
It is crucial to note that all movable parts within the Slide Core Units must be adequately lubricated. Smooth lubrication of these components is essential for good functionality, ensuring seamless movement and reducing friction. Regular lubrication maintenance contributes to the longevity and reliability of the units, preventing premature wear and tear.
Application in Diverse Industries:
The versatility of our Slide Core Units extends across various industries, making them a valuable asset for manufacturers engaged in producing a wide range of plastic components. From automotive parts and electronic enclosures to consumer goods and medical devices, these units cater to the diverse needs of different sectors. The extended stroke capability allows for the creation of intricate and detailed molds, enabling the production of complex parts with precision.
In conclusion, our Slide Core Units for Plastic Injection Mold are a practical and reliable solution for manufacturers seeking enhanced precision and efficiency in their molding processes. The use of high-quality SKD61 material, coupled with thoughtful design features, ensures that these units contribute to the seamless operation of molds, meeting the diverse needs of modern plastic injection molding applications. With an extended stroke, secure locking mechanisms, space-saving design, and user-friendly installation, our Slide Core Units are poised to elevate your molding capabilities, providing a dependable foundation for your manufacturing success.
