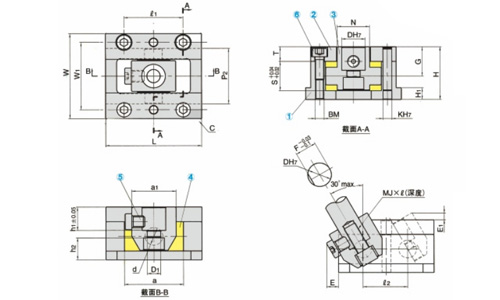

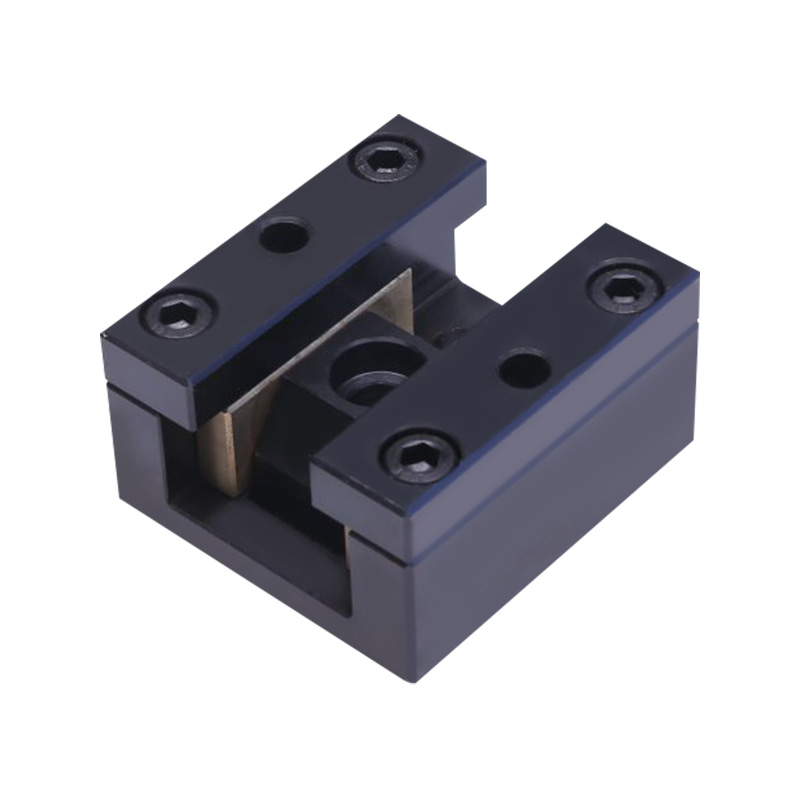

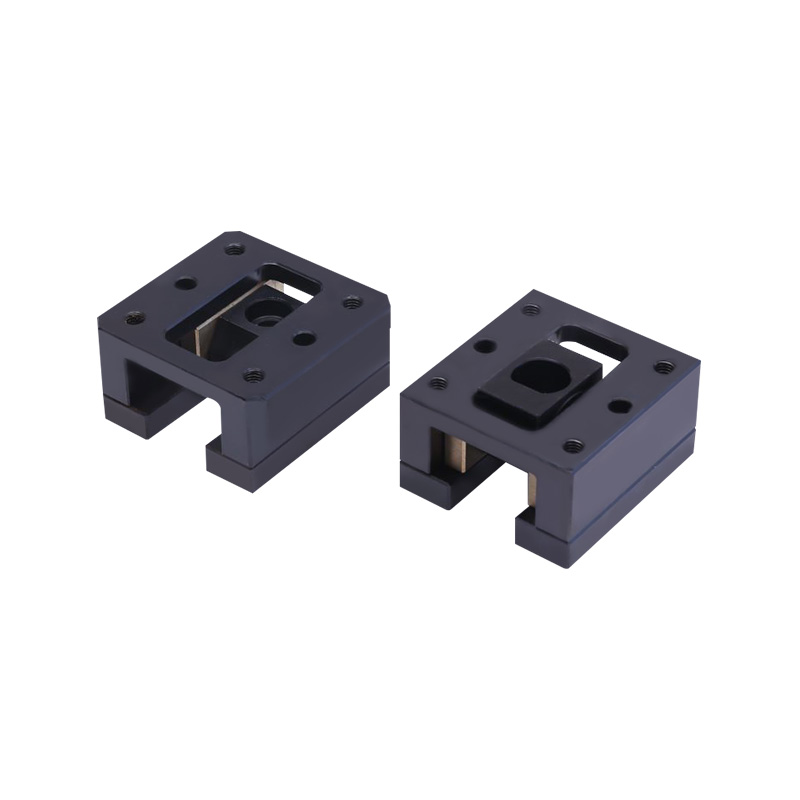

Model | Slide | See-Saw | Skewed guide bar mounts | Self-lubricating plate | F | G | Self-lubricating plate mounting angle A° | ||||||||||||
Type | D | W | L | H | H1 | P2 | C | T | D1 | a | h1 | h2 | a1 | N | S | a | |||
SCKS | 8 | 30 | 32 | 22 | 5 | 19 | 2 | 7 | 4.5 | 20 | 8 | 10 | 20 | 11 | 11 | 20 | 7 | 12.5 | 0 |
10 | 40 | 45 | 27 | 5 | 25 | 4 | 8 | 5.5 | 25 | 10 | 12.5 | 25 | 15 | 15 | 25 | 9 | 15.5 | ||
12 | 51 | 50 | 32 | 7 | 31 | 4 | 10 | 7 | 30 | 12 | 15 | 25 | 17 | 16 | 30 | 11 | 18 | ||
16 | 58 | 65 | 36 | 8 | 38 | 6 | 10 | 9 | 40 | 16 | 15 | 30 | 22 | 20 | 40 | 14.5 | 20 | ||
20 | 72 | 80 | 42 | 11 | 44 | 8 | 12 | 11 | 50 | 20 | 16 | 40 | 26 | 22 | 50 | 18 | 23 | ||
25 | 85 | 90 | 50 | 15 | 52 | 8 | 15 | 14 | 55 | 25 | 17 | 45 | 32 | 26 | 55 | 22.5 | 28 | ||
30 | 93 | 100 | 55 | 15 | 60 | 8 | 15 | 14 | 60 | 30 | 17 | 50 | 38 | 30 | 60 | 27 | 30 | ||
35 | 110 | 120 | 62 | 15 | 70 | 8 | 18 | 14 | 75 | 35 | 18 | 60 | 45 | 34 | 75 | 32 | 35 | ||
40 | 120 | 135 | 70 | 15 | 80 | 8 | 18 | 18 | 85 | 40 | 19 | 70 | 55 | 44 | 85 | 36 | 40 | ||
45 | 130 | 150 | 80 | 15 | 90 | 8 | 20 | 18 | 95 | 45 | 24 | 80 | 60 | 50 | 95 | 40 | 45 |
Model | Mounting hole size | ||||||||||
Type | D | d | 1 | 2 | W1 | BM | K | E | E1 | MJ | Depths |
SCKS | 8 | 7 | 20 | 10 | 24 | M3 | 3 | 3.6 | 10.5 | M4 | 8 |
10 | 7 | 30 | 18 | 32 | M4 | 4 | 4.5 | 11.3 | M5 | 9 | |
12 | 10 | 35 | 20 | 39 | M6 | 6 | 5 | 4 | M6 | 10 | |
16 | 12 | 40 | 25 | 46 | M6 | 6 | 5 | 5 | M6 | 12 | |
20 | 14 | 55 | 30 | 56 | M8 | 8 | 5 | 8 | M10 | 16 | |
25 | 16 | 65 | 35 | 66 | M10 | 10 | 6 | 8 | M12 | 20 | |
30 | 18 | 70 | 40 | 74 | M10 | 10 | 7 | 9 | M12 | 25 | |
35 | 20 | 80 | 45 | 85 | M12 | 10 | 8 | 10 | M12 | 30 | |
40 | 25 | 90 | 50 | 95 | M12 | 10 | 8 | 12 | M16 | 35 | |
45 | 30 | 110 | 55 | 105 | M12 | 10 | 10 | 14 | M16 | 40 |
