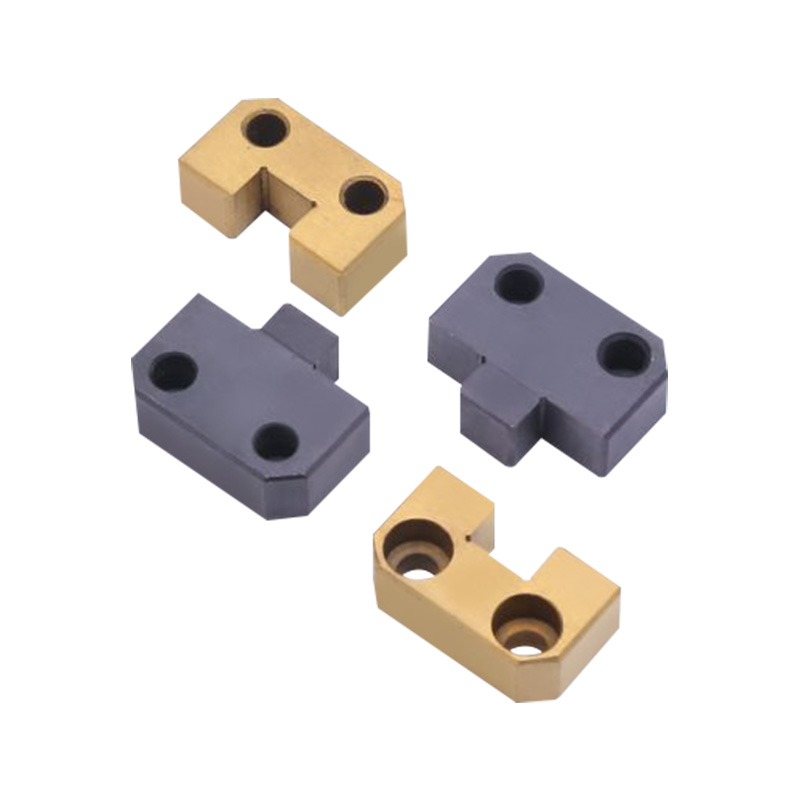

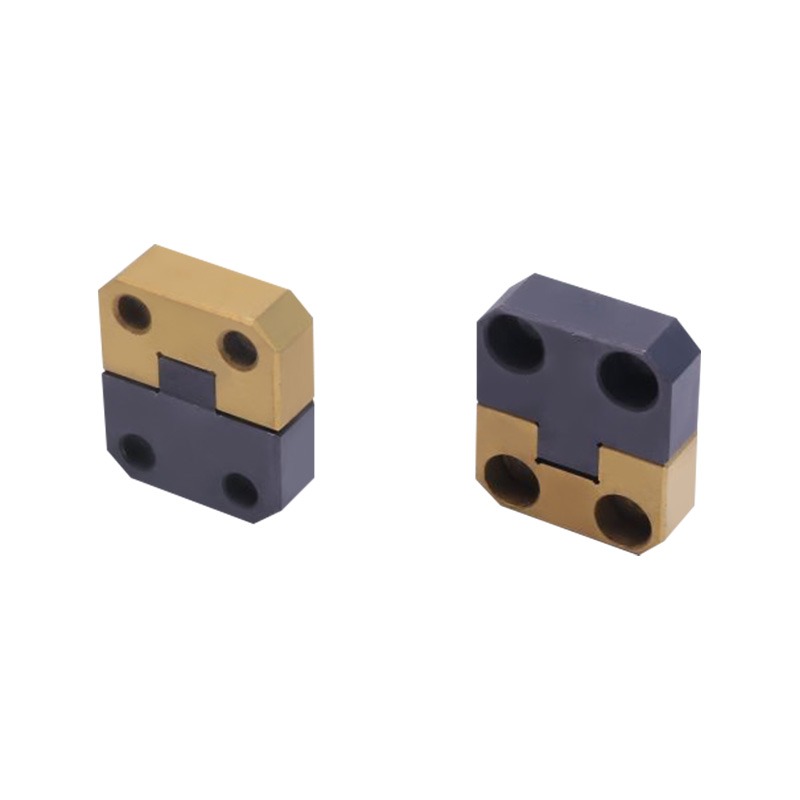

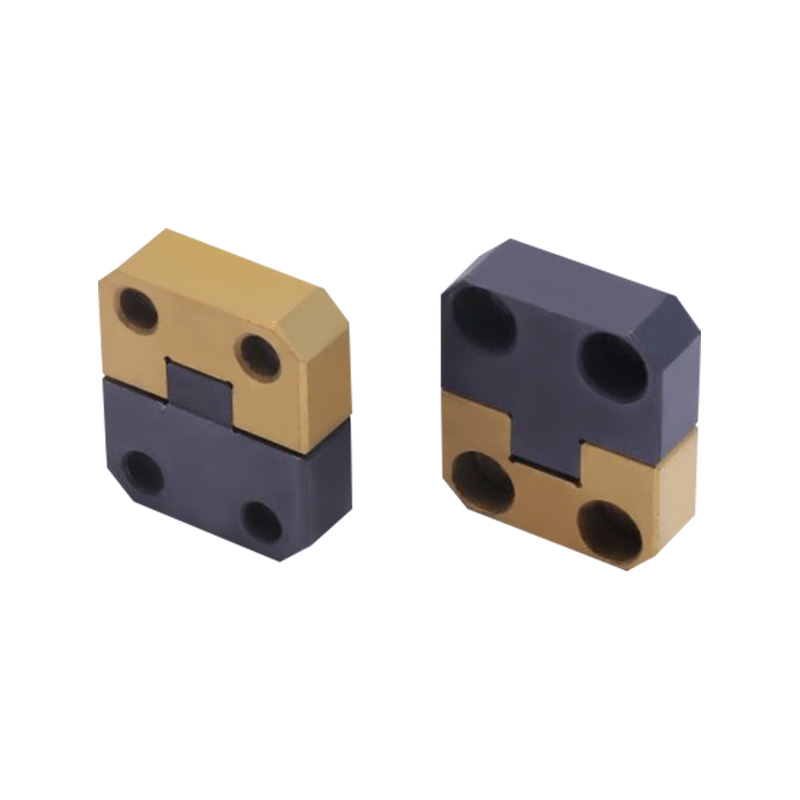

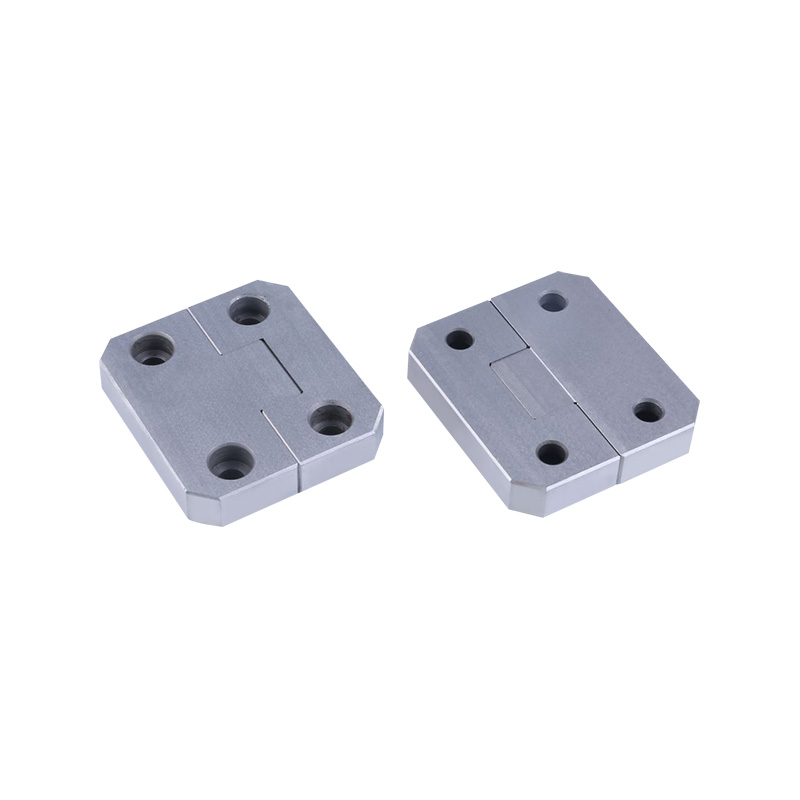

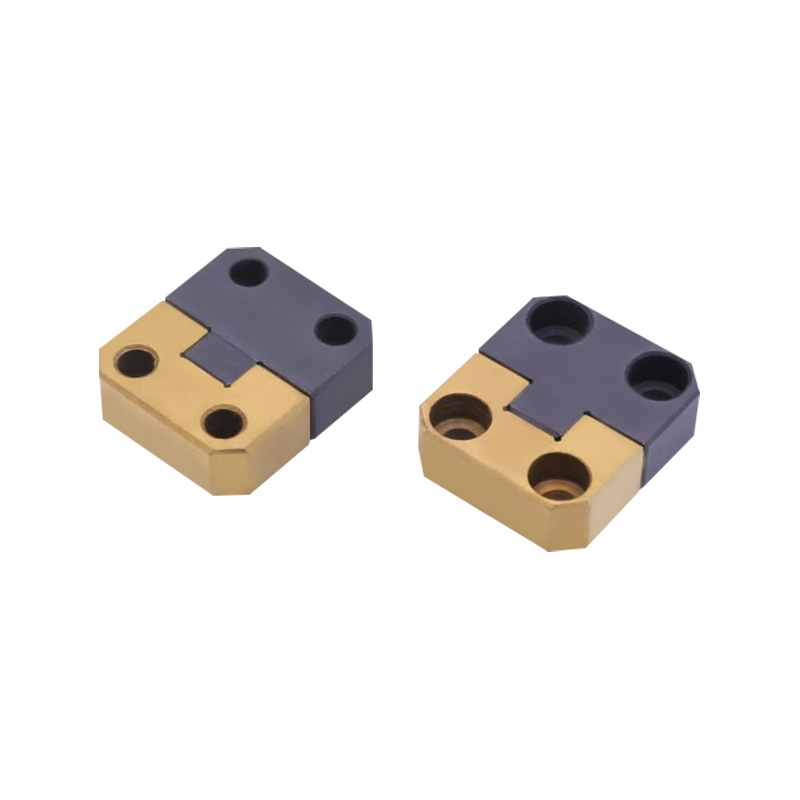

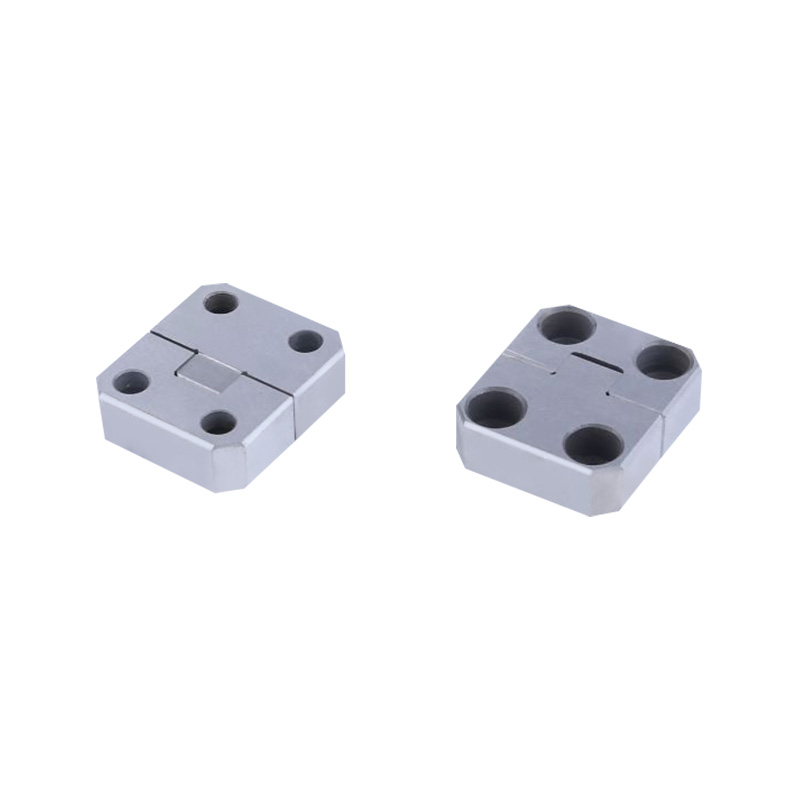

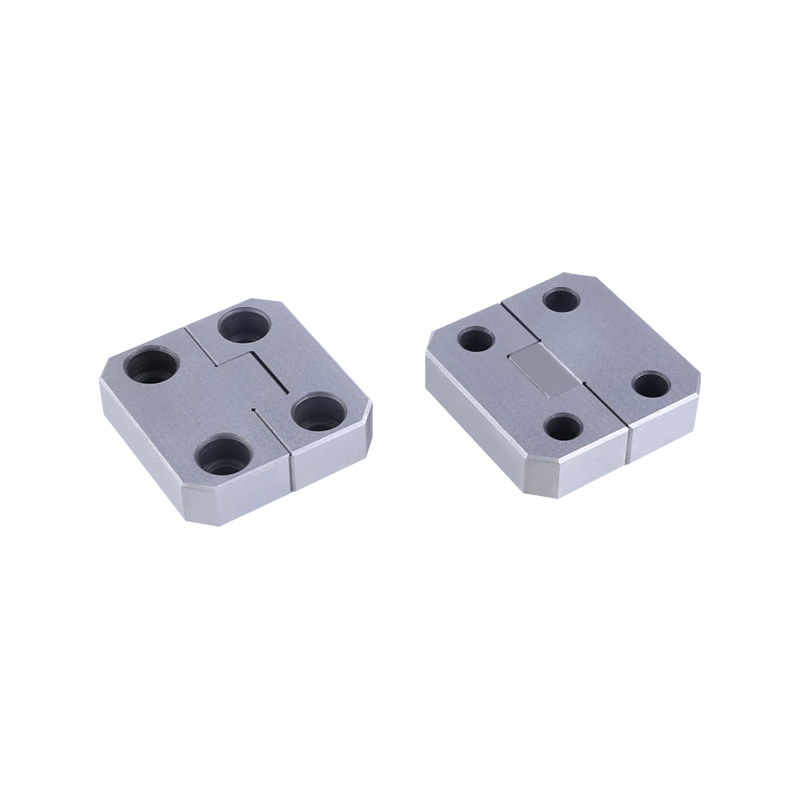

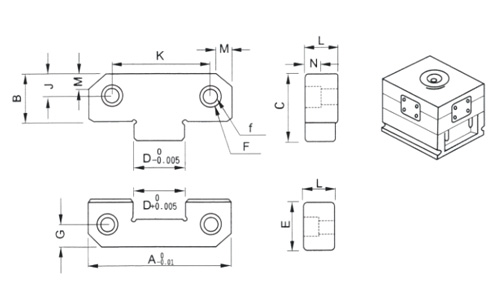

PL Square Side Locating Block Set Mold Parts

Welcome to our line of Precision Side Locating Block Sets designed to enhance the accuracy and functionality of molds, specifically tailored for applications such as connectors and electronic component molds. Our Precision Side Locating Block Sets address the critical need for accurate mold closure, ensuring a seamless molding process and reducing the risk of damage or wear on vital mold parts.
Purpose:
The primary purpose of our Precision Side Locating Block Sets lies in addressing the inherent gaps between guide pins and bushings within molds. These gaps, if not properly addressed, can cause misalignment between the cavity and core components, resulting in collisions with parts like core inserts and side ejector pins. Such collisions can cause damage, abnormal wear, dimensional variations in molded products, and even the formation of flash.
Key Advantages:
Accurate Cavity and Core Alignment: The Precision Side Locating Block Sets play a role in ensuring precise alignment between the cavity (fixed mold insert) and the core (movable mold insert). This alignment prevents misplacement and, consequently, mitigates the occurrence of adverse phenomena such as collisions and damage to mold components.
Collision Prevention for Electronic Component Molds: In molds for connectors and electronic components that employ numerous small, precision core inserts, the narrow spacing requires meticulous positioning to avoid collisions between core inserts. Our Precision Side Locating Block Sets offer a reliable solution for preventing such collisions.
Convenient Installation on Mold Surfaces: The side locating block components are designed for easy installation on the side surfaces of molds. The mounting holes (or slots) on the mold template are readily machinable, facilitating a hassle-free installation process.
Compatibility with Precision Guide Pins: Due to the goodly tight clearances involved, it is recommended to use our Precision Side Locating Block Sets in conjunction with precision-grade guide pins to achieve good performance.
Precision Symmetry: The Precision Side Locating Block Sets are classified as precision-grade components, boasting a symmetry level of 0.003mm or less. This level of precision ensures consistent and reliable performance.
Features:
Precision Mold Positioning: Tailored for the precise positioning requirements of molds used ie connector and electronic component manufacturing, our Precision Side Locating Block Sets ensure accurate alignment before embedding core components into the cavity.
Wear and Damage Prevention: By preventing misalignment and collisions between core and cavity components, these sets contribute significantly to reducing wear and damage, thereby extending the lifespan of mold parts.
Template Machining for Accurate Positioning: The design includes provisions for machining locating slots on the mold template, further ensuring accurate and secure positioning of the Precision Side Locating Block Sets.
Recommendation for Precision Guide Pins: Considering the minimal clearances, the use of precision-grade guide pins is strongly recommended to complement the Precision Side Locating Block Sets effectively.
In conclusion, our Precision Side Locating Block Sets offer a reliable and practical solution for achieving precise mold alignment, reducing the risk of damage, and enhancing the overall efficiency of mold manufacturing processes. With a focus on precision and functionality, these components are an asset for molds in applications where accuracy is important.
