TM Graphite Ti coated Locating Block Set
  • TM Graphite Ti coated Locating Block Set
  • TM Graphite Ti coated Locating Block Set
  • TM Graphite Ti coated Locating Block Set
  • TM Graphite Ti coated Locating Block Set
  • TM Graphite Ti coated Locating Block Set
  • TM Graphite Ti coated Locating Block Set

TM Graphite Ti coated Locating Block Set

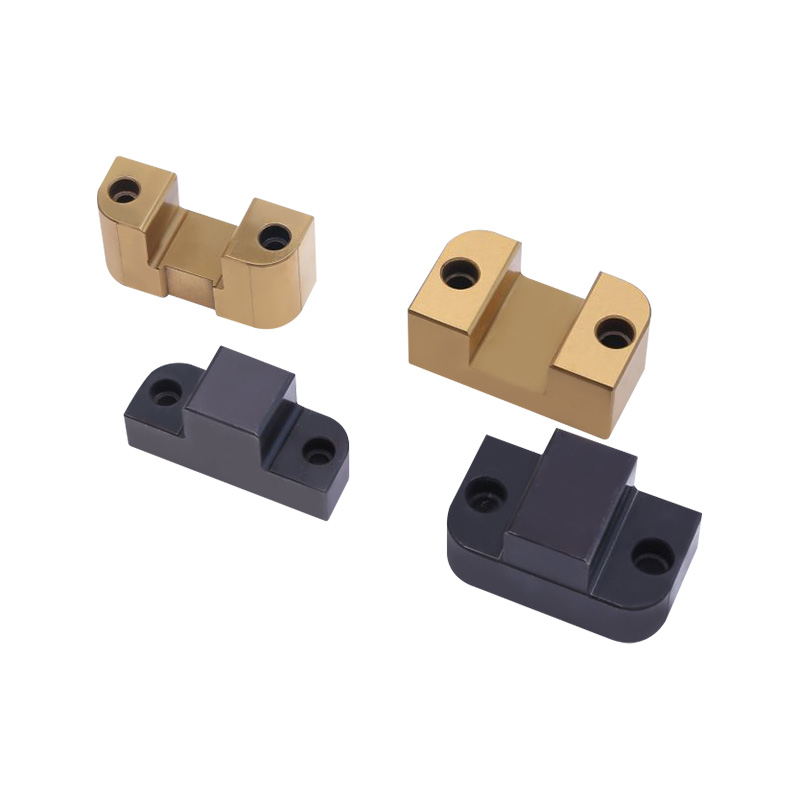

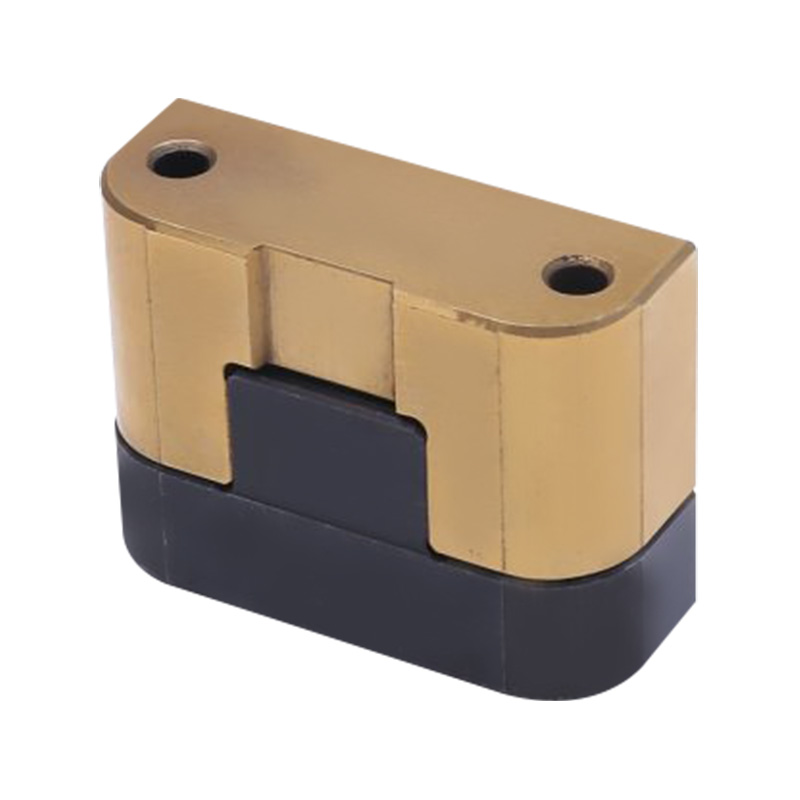

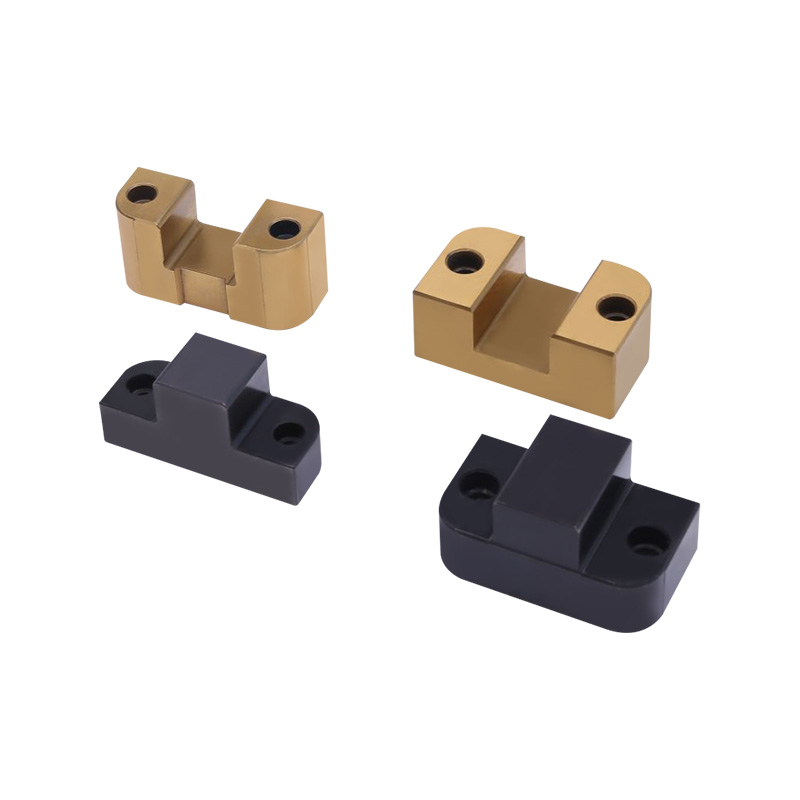

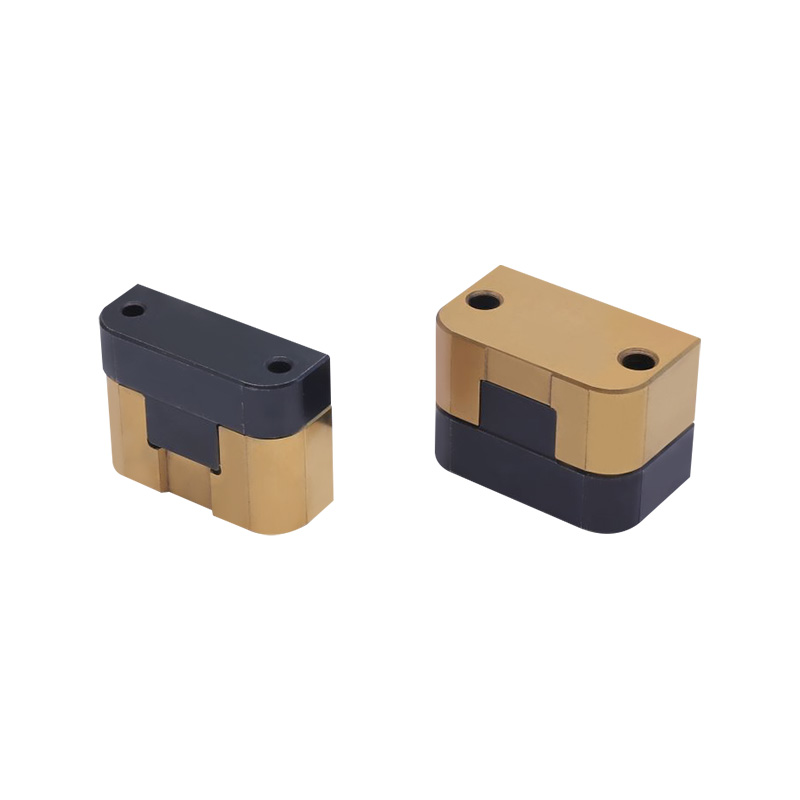

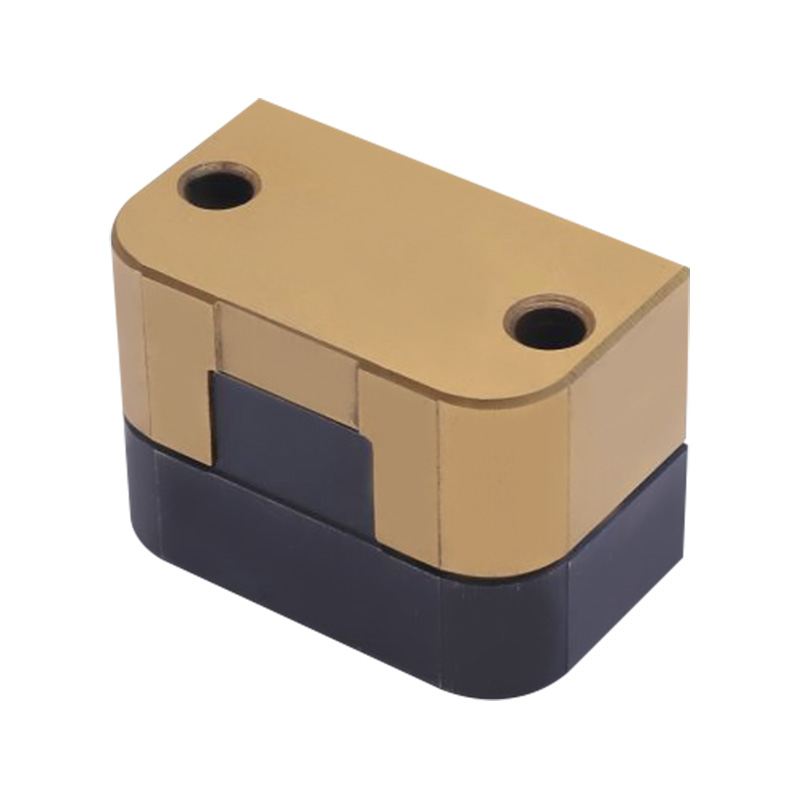

We are proud to present our innovative Locating Block Sets, specifically designed for application in plastic molding dies. Engineered with precision and functionality in mind, our Locating Block Sets offer a reliable and efficient solution for the assembly and disassembly of molds. The set consists of meticulously crafted male and female components, with the male block constructed from YK30 material featuring a Graphite/Black oxide finish, while the female block is composed of SKD11 with a Titanium Nitride Coating.
Key Features:
Ease of Installation and Disassembly:
The Locating Block Sets play a pivotal role in the seamless operation of molds. Their installation on the parting surfaces of molds is goodly convenient, ensuring quick and hassle-free assembly and disassembly. The presence of easily machinable installation holes (slots) on the template further adds to the user-friendly design.
Preventive Wear and Tear:
One of the primary advantages of these Locating Block Sets is their ability to prevent wear and damage to the core before embedding it into the mold cavity. This proactive approach significantly contributes to the longevity of the core, reducing the need for frequent replacements and reducing maintenance costs.
Precise Positioning:
The Locating Blocks are engineered to ion, and their installation results in precise positioning of the mold components. By concurrently machining locating grooves on the template, we ensure accurate alignment, contributing to the overall efficiency and quality of the molding process.
Symmetrical Installation for Large Molds:
For large molds, we recommend the installation of a reduce of two sets of Locating Blocks on each side, ensuring symmetry and balance. This strategic placement enhances the stability of the mold, especially in scenarios where substantial pressure and force are applied during the molding process. In certain cases, such as with expansive molds, we advise the installation of 4 to 6 sets for good performance.
Customizable Finishes:
To cater to diverse customer requirements, our Locating Block Sets are available with optional finishes. Clients can choose between a Graphite/Black oxide finish or a Titanium Nitride Coating, depending on their specific needs. The black finish not only adds a sleek aesthetic but also contributes to increased hardness and wear resistance.
Enhanced Durability:
The Titanium Nitride Coating option provides an additional layer of durability and wear resistance. This coating is particularly advantageous in scenarios where molds are subjected to rigorous usage and abrasive conditions. The Locating Block Sets, with their enhanced durability, ensure longevity and reliability in demanding molding environments.
Application Versatility:
Our Locating Block Sets find applications across various industries, including automotive, household appliances, furniture, commodities, and electronics. The adaptability of these sets to diverse manufacturing needs positions them as versatile solutions in the molding industry.
In summary, our Locating Block Sets stand as a testament to our commitment to providing reliable and efficient solutions for the plastic molding industry. With a focus on practicality, precision, and durability, these sets contribute significantly to the smooth operation of molds, enhancing overall productivity. The customizable finishes and application versatility make them a valuable asset in diverse manufacturing environments.
