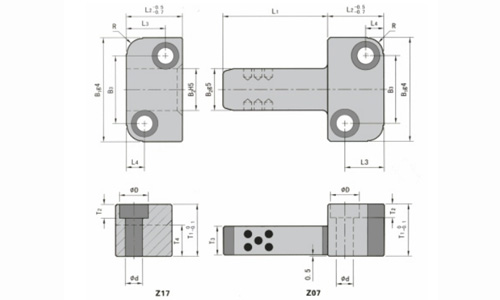

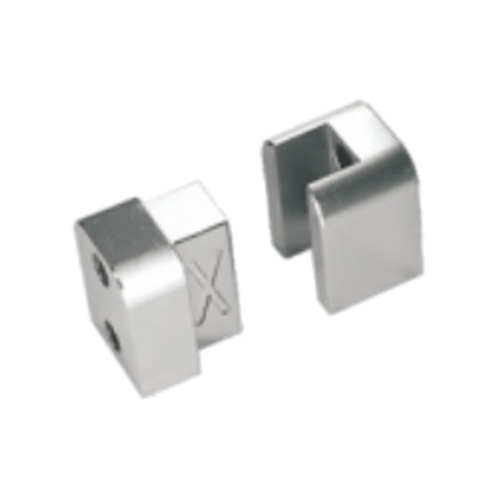

ZZ07/ZZ17 Precision Square Guide Bar/Guide Retainer
  • ZZ07/ZZ17 Precision Square Guide Bar/Guide Retainer

ZZ07/ZZ17 Precision Square Guide Bar/Guide Retainer

Precision Square Guide Bar/Guide Retainer is a specialized component designed to address the unique challenges posed by molds and small molds with limited space. It goes beyond conventional solutions, offering a nuanced approach to positioning inserts and ensuring good functionality in precision molds, particularly those used in the production of connectors and electronic components.
Features:
Versatility for Limited Spaces:
The Precision Square Guide Bar/Guide Retainer is adept at accommodating molds and small molds with confined spaces. Its design allows for peripheral positioning, thereby increasing the available space around the insert. This feature is particularly advantageous in scenarios where spatial constraints are a critical consideration.
Machining Avoidance:
One notable characteristic of this guide bar is the deliberate avoidance of machining on both sides of the pin. This strategic design choice enhances its utility for positioning around the insert, offering a seamless and efficient solution for precision molding.
Comprehensive Positioning Accuracy:
The Precision Square Guide Bar/Guide Retainer boasts complete positioning accuracy and specifications. Its versatility extends to positioning within the insert, ensuring a wide range of applications and adaptability to diverse molding requirements.
Core Protection Mechanism:
A critical advantage of utilizing Precision Square Guide Bar/Guide Retainer is its ability to facilitate core positioning before embedding it into the cavity. This proactive measure plays a crucial role in preventing wear and damage to the core, thereby enhancing the longevity and performance of the mold.
Enhanced Productivity:
By virtue of its precise positioning capabilities, the Precision Square Guide Bar/Guide Retainer contributes significantly to enhanced productivity in mold manufacturing. The avoidance of machining on both sides of the pin and the peripheral positioning feature collectively reduce setup time, allowing for a more streamlined and efficient production process.
Industry-Standard Reliability:
Being an industry-standard tool, the Precision Square Guide Bar/Guide Retainer embodies reliability. Its adoption by numerous manufacturers across different sectors attests to its consistent performance and ability to meet the rigorous demands of modern precision molding standards.
Applications:
The applications of Precision Square Guide Bar/Guide Retainer span a wide spectrum within the precision molding landscape. It finds relevance in the following scenarios:
Connector Molds:
Precision is important in the production of connectors, where the alignment of intricate components is crucial. The Precision Square Guide Bar/Guide Retainer excels in this domain, providing the necessary accuracy for flawless connector molding.
Electronic Component Molds:
In the realm of electronic component manufacturing, where miniaturization and precision are key, this guide bar becomes an indispensable tool. Its versatility and precision make it an ideal choice for molding electronic components with intricate details.
Limited Space Molds:
Molds with limited space present a unique set of challenges. The peripheral positioning capability of the Precision Square Guide Bar/Guide Retainer becomes particularly valuable in such scenarios, allowing for efficient use of available space.
In conclusion, Precision Square Guide Bar/Guide Retainer stands as a reliable, practical, and versatile solution for precision molding applications. Its features cater to the specific needs of molds and small molds with limited space, providing comprehensive positioning accuracy and protection mechanisms for critical components like connectors and electronic parts. As an industry-standard tool, it ensures that precision molds operate seamlessly, meeting the stringent requirements of modern manufacturing.
