CNC Engraving And Milling Machine Company

Home / Product / Machine Tool / CNC Engraving And Milling Machine

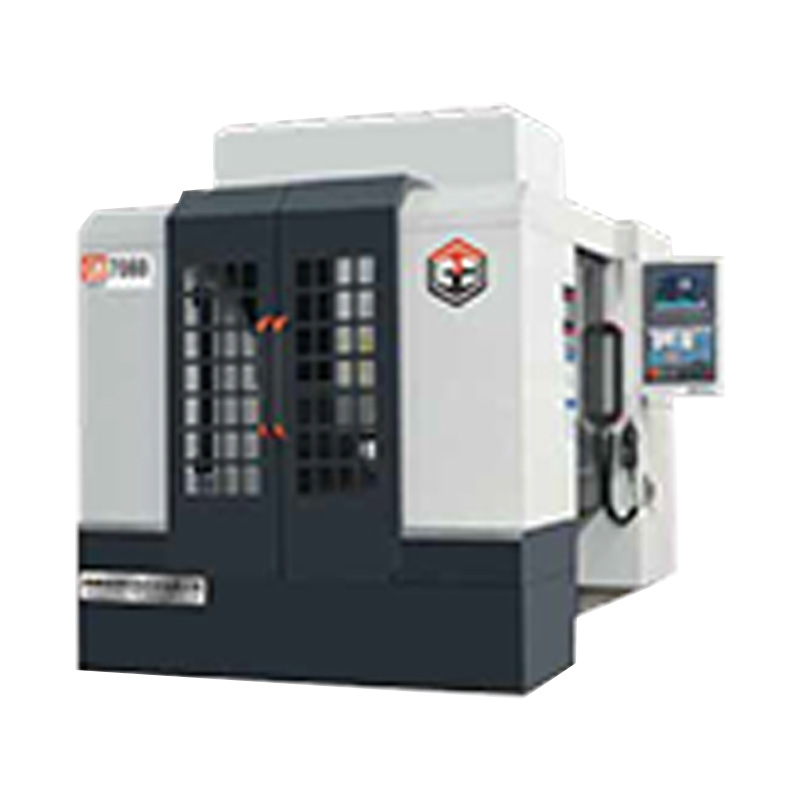

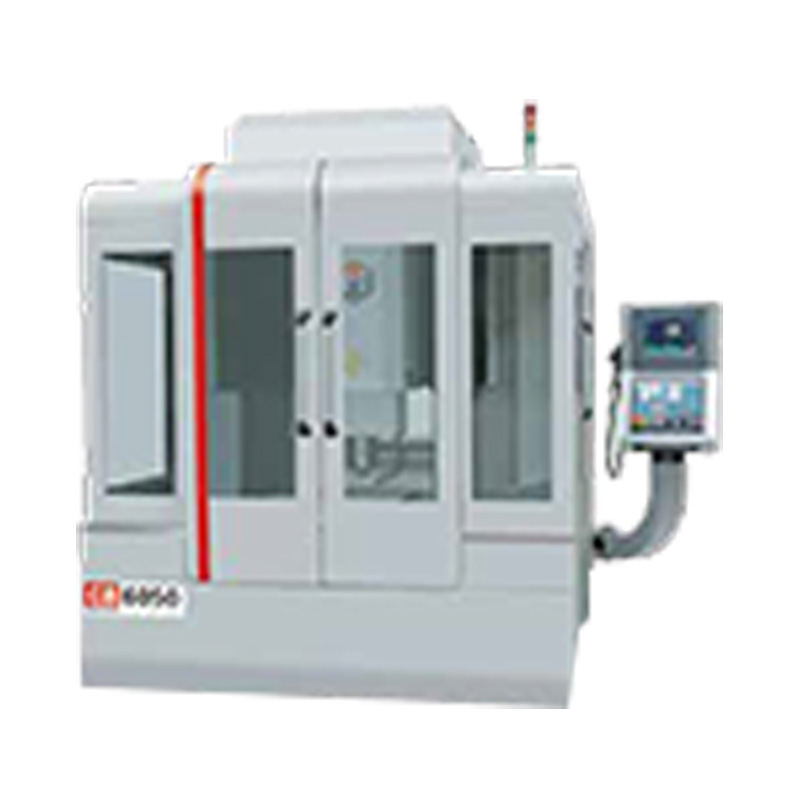

Project Unit GB-6050 GB-7080
Maximumengravingsize mm 600×500×250 700×800×300
Maximumblankspeed mm/mir 15000  15000
Variablefrequencyspindle kw 5.5  5.5(Optional7.5)
Maximumspindlespeed r/min 18000(Optional 24000) 18000
Spindlediameter mm φ3-φ16 φ3- φ 19
Ratedpower kw 8  10
Drivemotor Japan/Taiwan servo motor options
CNCsystem Syntec system selection
Worktablebearingweight kg 500  600
Weight T 2.8  3.2
Tablesize mm 600×500 700×800

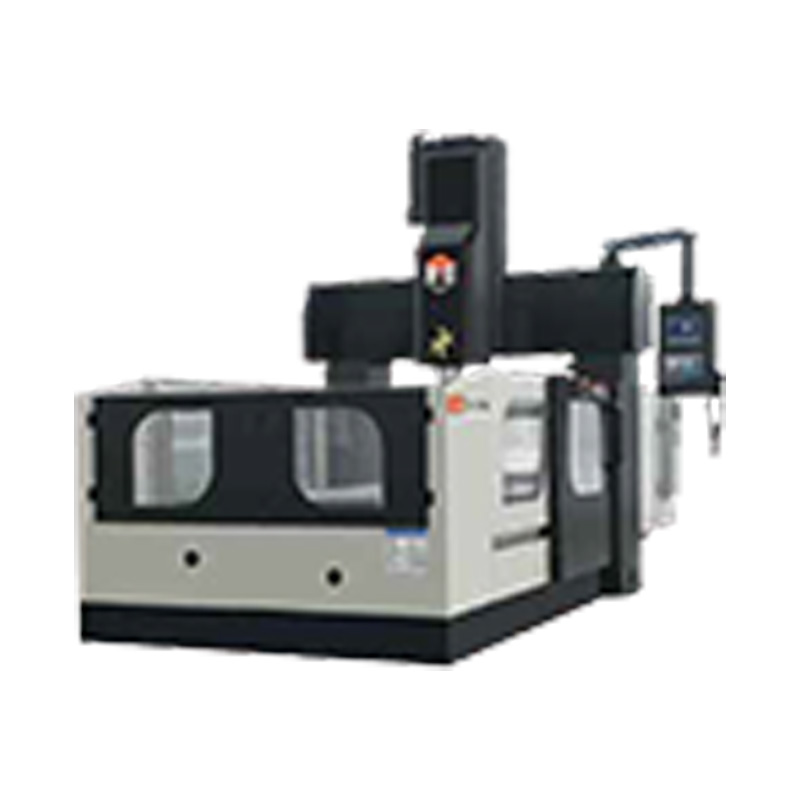

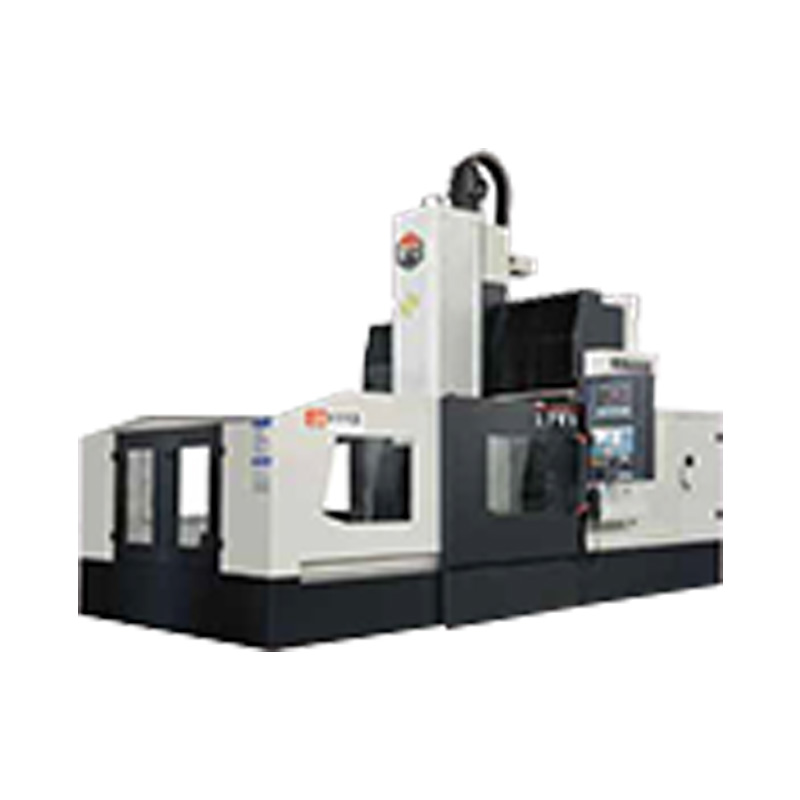

Project Unit GB-1113 GB-1316 GB-1520
Maximum engraving size mm 1300×1100×500(Optional 700) 1600×1300×500(Optional 700) 2000×1500×500(Optional 700)
Maximum idle speed mm/mir 12000  12000  12000
Servo spindle motor kw 7.5 Belt 8000 rpm/7.5 direct connection
12000 rpm		 7.5 Belt 8000 rpm/7.5 direct connection
12000 rpm		 11Belt 8000 rpm/11
12000
Maximum spindle speed of
variable frequency electric
spindle		 r/min 15000  15000  15000
Spindle suitable tool handle BT40 BT40 BT40
Rated power consumption kw 18  20  25
Drive motor Japan/Taiwan servo motor options
CNC system Syntec system selection
Worktable load kg 2000  2000  3000
Weight T 6.8  8  12
Workbench size mm 1300×1100 1600×1300 2000×1500

Related Products

About
Zhanmeng Mould Parts Co., Ltd.
Zhanmeng Mould Parts Co., Ltd.
Zhanmeng Mold Parts Co., Ltd. is a professional CNC Engraving And Milling Machine manufacturer specializing in the production, sales, and design of CNC Engraving And Milling Machine. We have accumulated many years of industry experience in the production, processing, management, and technology of molds. In line with the concept of technology, quality, and service, our factory sincerely serves our valued friends at home and abroad.

The team of Zhanmeng has adhered to the concept of a high starting point, high level, and high standard at the time of establishment. The main management and technical personnel have been engaged in the hardware stamping and mold manufacturing industry for more than 10 years, and the operating staff have followed the industry for many years and are skilled in operation.
