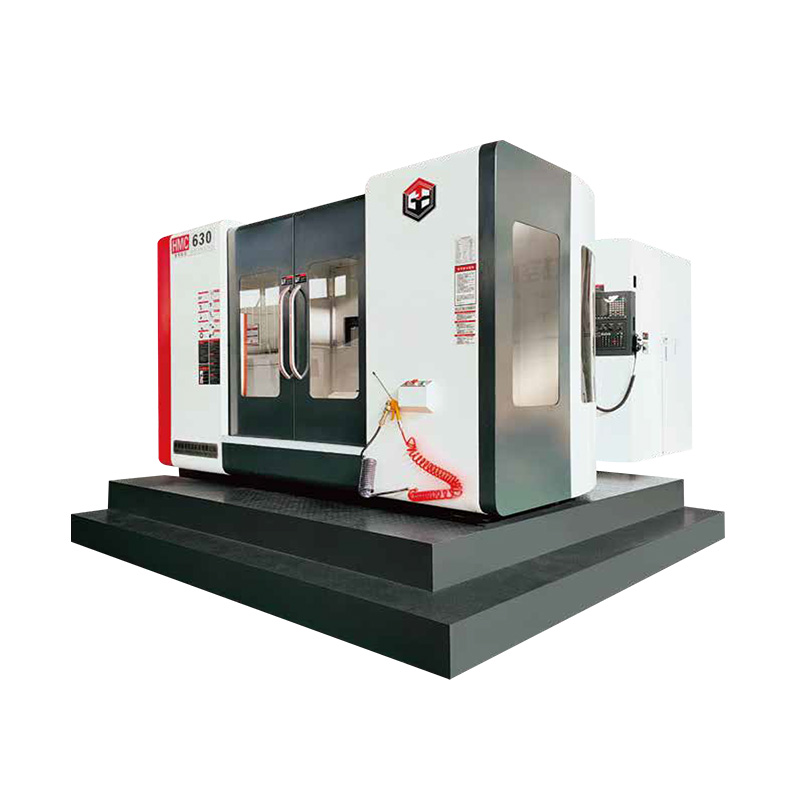

Horizontal Machining Center Series

Characteristics of machine tool
HMC horizontal machining center is our mature high-end CNC machine tool. The lathe bed, column, boring iron head are made of high strength cast iron molded by resin sand.After secondary aging treatment, the lathe has high rigidity and stability for a long time.
The machine tool is designed by 3D software. The structure of the machine is analyzed by finite element method, the reinforcement structure is optimized and the quality is distributed reasonably, so that the machine performance is more in line with the requirements of machining characteristics and stability.
1. High rigidity direct coupled spindle, equipped with high horsepower motor.
2. Three-axis direct connection design, suitable for high-speed feed cutting.
3. All three shafts adopt precision ball screw with large diameter which is precompressed properly to improve the positioning accura-cy of the machine tool.
4. Adopt full protection design to protect environment and reduce labor intensity.

Special configuration
CNC rotary table
Grating ruler
Water outlet from spindle center

PREV: Vertical And Horizontal Composite Machining Center Next: Vertical Machining Center Series
Project Unit HMC630 HMC800 HMC1000
Table size mm 630x700 800x800 1000x1000
Workbench indexing 1°x360 1°x360 1°x360
Maximumturning diameter of the workbench mm Φ1200 Φ1600 Φ1800
Maximum load of workbench Kg 950 1500 2000
Processing range
Leftand righttrnavel(X) mm 1050 1100 1600
Foreandaft travel(Y) mm 900 900 1000
Up and DownTrvel(Z) mm 750 850 1000
Distance from spin dle center t ocolumn guide rail mm 120-870 100-950 120-1120
Distance from spin dle end face to work table mm 130-1030 180-1080 200-1200
Splndle
Spindle tool holder BT50 BT50 BT50
Spindle speed (geart rans mission) 1stgear/high rpm 6000 6000 6000
Spin dle motor power KW 15/18.5 15/18.5 15/18.5
Optional gear head
Three-aods feed drive
three-axis cutting feed mm/min 8/8/8/4r/min 8/8/8/4r/min 8/8/8/3r/min
three-axis fast moving speed m/min 24/24/24/8r/min 20/20/20/8r/min 20/20/20/6r/min
three-axis fast moving speed Three wire roller
X/Y/Z axis ball screw spedfication mm Φ40/Φ50/Φ40 Φ50/Φ50/Φ50 Φ50/Φ50/Φ50
Tool magazine
Toolm agazine form Disk manipu lator type
Magazine capadty PCS 24T 24T 24T
Maximum tool diameter(fulltool/blank tool) mm Φ120/Φ200 Φ120/Φ200 Φ120/Φ200
Maximum toollength mm 300 300 300
Maximum weight of cutter kg 18 18 18
Tool change time(tool to
tool)		 Sec 3.5 3.5 3.5
Accuracy
X,Y,Z positioning accuracy mm 0.008/300 0.008/300 0.008/300
X,Y,Z repeat positioning accuracy mm 0.005/300 0.005/300 0.005/300
Other
Compressed air pressure kg/cm2 ≥6
power capacity kVA 45 45 45
Outline Scoop/LxWxH mm 3200x3600x3000 3500x3800x3200 3770x4000x3500
