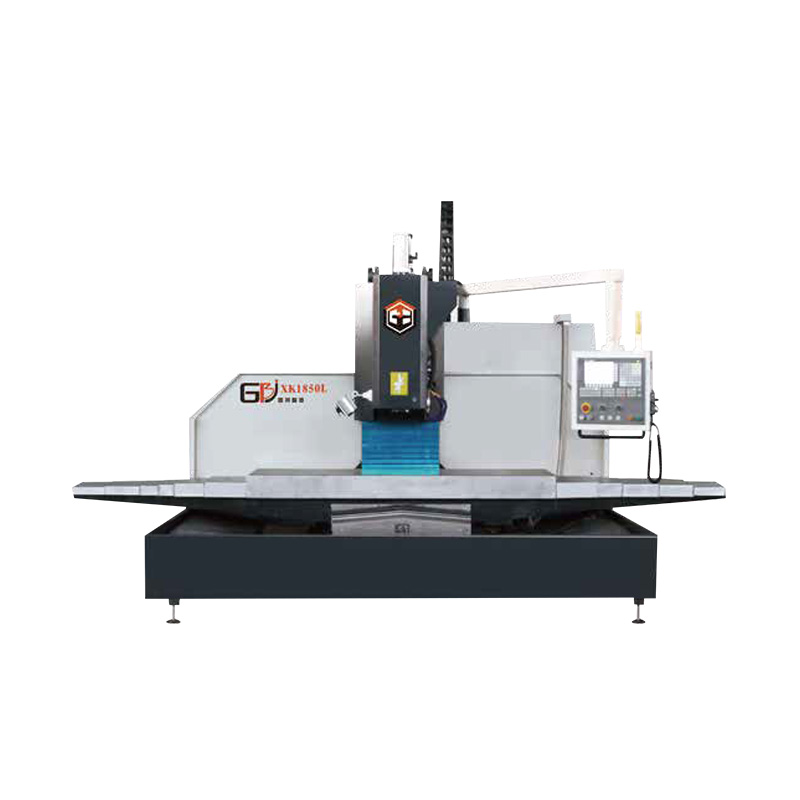

CNC Strong Iron Bed Series

Characteristics of machine tool
XK series CNC machine body iron bed is suitable for machin-ing plane, bevel, groove and so on with various kinds of bar-shaped iron knives, circular iron knives and angle iron knives. This product is concluded Reliable structure, good performance, stable quality, easy to operate, can be high-speed cutting and bearing heavy load cutting work.
1. The machine tool adopts high quality Mihannah casting the lathe body adopts four-guide rail structure, ultra-wide gauge, excellent stability.
2. All castings are tempered twice, guide rail surface is quenched at high frequency, with high rigidity and high precision.
3. The three axles use polytetrafluoroethylene plastic sliding guide rail with small friction coefficient, good shock absorp tion, wear resistance and high precision.
4. The machine tool has large working stroke and wide machining range.
5. The main shaft is driven by pure grinding gear, with low noise, large cutting force and high transmission precision.
6. The main shaft adopts BT type main shaft, pneumatic cutter cylinder structure, fast tool change, high efficiency and low labor intensity.
7. The machine tool adopts full-cover protection design to provide a good working.

Special configuration
Full protection
BT50 spindle
Servo spindle gear head
Fourth axis

PREV: Vertical Machining Center Series Next: Gear Head Vertical Machining Center Series
Project Unit XK1850 XK1850L XK2060 XK2060L XK2080 XK2080L
Work table
Table size mm 1800x500 2000x500 2000x600 2200x600 2000x800 2200x800
Maximum load of workbendh kg 1500 1700 1750 2000 2000 2200
Distance from workbend to spindle end face mm 120-720 120-720 120-820 120-820 120-920 120-920
Processing range
Leftand right X mm 1300 1600 1600 1800 1600 1800
Frontand rear Y mm 500 500 600 600 800 800
Upand Down Z mm 600 600 700 700 800 800
Feed drtve
Feedrate X/Y/Z m/min 5 5 5 5 5 5
Fastmoving speed X/Y/Z m/min 10/10/8 10/10/8 10/10/8 10/10/8 10/10/8 10/10/8
Spindle
Spindle taper BT50 BT50 BT50 BT50 BT50 BT50
Spindle speed (manual shifting) rpm 50-1430 50-1430 50-1430 50-1430 50-1430 50-1430
Spindle motor KW 7.5/11 7.5/11 11 11 11 11
Accuracy
Positioning Accuracy mm ±0.008/500 ±0.008/500 ±0.008/500 ±0.008/500 ±0.001/300 ±0.001/300
Repeatability mm ±0.005/500 ±0.005/500 ±0.005/500 ±0.005/500 ±0.005/500 ±0.005/500
Triaoxdial
Triaxial Motor Torque N.m 15/15/15 15/15/15 18/18/18 18/18/18 28/28/28 28/28/28
Other
Power Requirement KVA 25 25 30 30 35 35
Pneumatic Requirements Kgf/cm2 6 6 6 6 6 6

Table size

L W N A B
VHC1850 1800  500  5  50  100
VHC2060 2000  600  5  100  100
VHC2080 2000  800  5  100  150

TableT-slot

W1 W2 H1 H2 H3
VHC1850 32  18 26  12 14
VHC2060 36  22  42 24 18
VHC2080 36  22  42 24 18

Outline scoop

L max W max H max
VHC1850 4112 2460 2600
VHC2060 4920 2690 2800
VHC2080 4920 3100 3050
