Gear Head Vertical Machining Center Series
  • Gear Head Vertical Machining Center Series
  • Gear Head Vertical Machining Center Series
  • Gear Head Vertical Machining Center Series

Gear Head Vertical Machining Center Series

Characteristics of machine tool
1. The structure of the bed is stable and can bear the inertia caused by high speed motion.

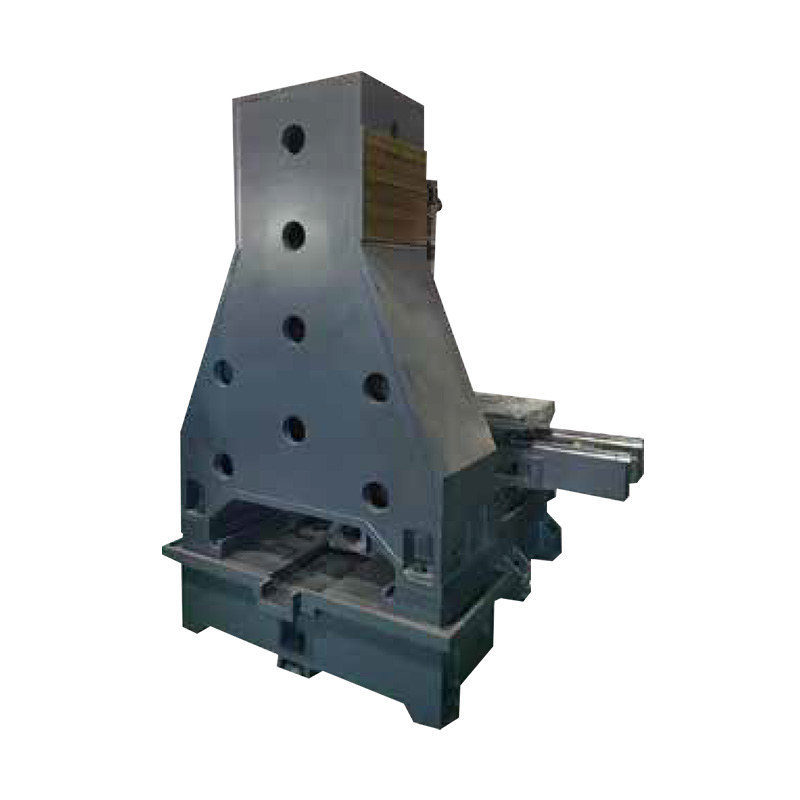

2. The column adopts "herringbone" design to improve overall rigidity and minimize thermal defommation.
3. Precision high speed mute imported ball screw, improve the accuracy of machine tool.
4. The imported heavy load linear slide rail is adopted to make the machine tool move smoothly and position accurately.
5. Equipped with Taiwan original 24T tool magazine, suitable for the processing of complex parts.
6. The imported gear drive spindle provides the cutting rigidity of the machine tool, high speed cutting stability and high efficiency.

Standard configuration
Servo spindle gear head
High speed gear head

Special configuration
Chain chip conveyor
Servo spindle gear head
Fourth axis
Water outlet from spindle center

PREV: CNC Strong Iron Bed Series Next: Gear Head Hard Track Machining Center Series
Project Untt VHC855 VHC1160 VHC1265 VHC1370 VHC1370B VHC1580 VHC1890
Work table
Table size mm 1000x550 1200x600 1300x650 1400x700 1300x700 1700x800 2000x900
Table T-slot 5-18x90 5-18X100 5-18x115 5-18x140 5-18x110 7-18x110 5-22x165
Maximum load of workbench kg 500 600 1000 1200 1200 1500 1700
Processing range
Leftand righttrnavel(X) mm 800 1100 1200 1300 1300 1500 1800
Foreandaft travel(Y) mm 550 600 650 700 700 800 900
Up and DownTrvel(Z) mm 550 600 650 700 600 700 700
Distance from spin dle center t ocolumn guide rail mm 600 650 700 785 785 862 960
Distance from spin dle end face to work table mm 120-670 120-720 150-800 120-820 120-720 150-850 150-850
Splndle
Spindle tool holder BT40 BT40 BT50 BT50 BT50 BT50 BT50
Spindle speed (geart rans mission) 1stgear/high rpm 4500 4500 3000 3000 3000 3000 3000
Spin dle motor power kw 7.5/11 11/15 15/18.5 15/18.5 15/18.5 15/18.5 15/18.5
Three-aods feed drive
three-axis cutting feed mm/min 10000 10000 10000 10000 10000 10000
three-axis fast moving speed m/min 36/36/30 36/36/30 24/24/20 24/24/20 24/24/20 20/20/16 20/20/16
three-axis fast moving speed Three wires/two wires and one hard
X/Y/Z axis ball screw spedfication mm Φ40/Φ40/Φ40 Φ40/Φ40/Φ40 Φ50/Φ50/Φ50 Φ50/Φ50/Φ50 Φ40/Φ40/Φ40 Φ50/Φ50/Φ50 Φ55/Φ55/Φ55
Tool magazine
Toolm agazine form Disk manipu lator type
Magazine capadty PCS 24T 24T 24T 24T 24T 24T 24T
Maximum tool diameter(fulltool/blank tool) mm Φ75/Φ150 Φ75/Φ150 Φ120/Φ200 Φ120/Φ200 Φ120/Φ200 Φ120/Φ200 Φ120/Φ200
Maximum toollength mm 300 300 300 300 300 300 300
Maximum weight of cutter kg 8 8 8 8 8 8 8
Tool change time(tool to
tool)		 Sec 2 2 3.5 3.5 3.5 3.5 3.5
Accuracy
X,Y,Z positioning accuracy mm 0.008/300 0.008/300 0.008/300 0.008/300 0.008/300 0.008/300 0.008/300
X,Y,Z repeat positioning accuracy mm 0.005/300 0.005/300 0.005/300 0.005/300 0.005/300 0.005/300 0.005/300
Other
Compressed air pressure kg/cm2 ≥6
power capacity kVA 25 30 35 35 35 40 40
Outline Scoop/LxWxH mm 2720x400x2600 3000x2600x2800 3400x2700x2900 3600x2800x3000 3600x2800x3000 3900x3000x3300 4200x3200x3350
