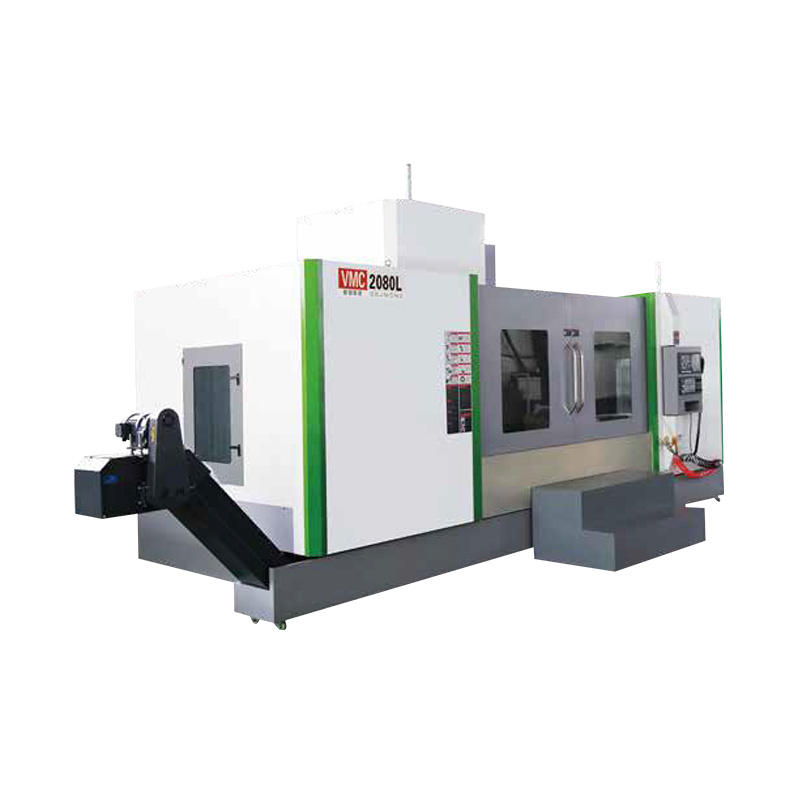

Vertical Machining Center Series

Characteristics of machine tool
1. The structure of the bed is stable and can bear the inertia caused by high speed motion.
2. The column adopts "herringbone" design to improve overall rigidity and minimize thermal deformation.
3. Precision high speed mute imported ball screw, improve the accuracy of machine tool.
4. The imported heavy load linear slide rail is adopted to make the machine tool move smoothly and position accurately.
5. Equipped with Taiwan original 24Ttool magazine, suitable for the processing of complex parts.
6. The imported spindle provides the cutting rigidity of the machine tool, high speed cutting stability and high efficien.

Standard configuration
Servo belt drive spindle

Special configuration
Chain chip conveyor
Fourth axis
Water outlet from spindle center

PREV: Horizontal Machining Center Series Next: CNC Strong Iron Bed Series
Project Unit VMC850 VMC855 VMC1160 VMC1265 VMC1370 VMC1370B VMC1580 VMC1890
Work table
Table size mm 1000x500 1000x550 1200x600 1300x650 1400x700 1300x700 1700x800 2000x900
Maximum load of workbendh kg 5-18x90 5-18x90 5-18x100 5-18x115 5-18x110 5-18x110 7-18x110 5-22x165
Distance from workbend to spindle end face mm 400 500 600 1000 1200 1200 1500 1700
Processing range
Leftand righttrnavel(X) mm 800 800 1100 1200 1300 1300 1500 1800
Foreandaft travel(Y) mm 500 550 600 650 700 700 800 900
Up and DownTrvel(Z) mm 500 550 600 650 700 600 700 700
Distance from spin dle center t ocolumn guide rail mm 550 600 650 700 785 785 862 960
Distance from spin dle end face to work table mm 150-650 120-670 120-720 150-800 120-820 120-720 150-850 150-850
Splndle
Spindle tool holder BT40 BT40 BT40 BT50 BT50 BT40/BT50 BT50 BT50
Spindle speed (geart rans mission) 1stgear/high rpm 8000 8000 8000 6000 6000 8000/6000 6000 6000
Spin dle motor power kw 7.5/11 7.5/11 11/15 15/18.5 15/18.5 11/15 15/18.5 15/18.5
Three-aods feed drive
three-axis cutting feed mm/min 10000 10000 10000 10000 10000 10000 10000 10000
three-axis fast moving speed m/min 36/36/30 36/36/30 36/36/30 24/24/16 24/24/20 24/24/20 20/20/16 20/20/16
three-axis fast moving speed Three wires/two wires and one hard
X/Y/Z axis ball screw spedfication mm Φ40/Φ40/Φ40 Φ40/Φ40/Φ40 Φ40/Φ40/Φ40 Φ50/Φ50/Φ50 Φ50/Φ50/Φ50 Φ40/Φ40/Φ40 Φ55/Φ55/Φ55 Φ55/Φ55/Φ55
Tool magazine
Toolm agazine form Disk manipu lator type
Magazine capadty PCS 24T 24T 24T 24T 24T 24T 24T 24T
Maximum tool diameter(fulltool/blank tool) mm Φ75/Φ120 Φ75/Φ120 Φ75/Φ120 Φ120/Φ200 Φ120/Φ200 Φ120/Φ200 Φ120/Φ200 Φ120/Φ200
Maximum toollength mm 300 300 300 300 300 300 300 300
Maximum weight of cutter kg 8 8 8 18 18 18 18 18
Tool change time(tool to
tool)		 Sec 2 2 2 3.5 3.5 3.5 3.5 3.5
Accuracy
X,Y,Z positioning accuracy mm 0.008/300 0.008/300 0.008/300 0.008/300 0.008/300 0.008/300 0.008/300 0.008/300
X,Y,Z repeat positioning accuracy mm 0.005/300 0.005/300 0.005/300 0.008/300 0.005/300 0.005/300 0.005/300 0.005/300
Other
Compressed air pressure kg/cm2 ≥6
power capacity kVA 25 25 30 35 35 30 35 35
Outline Scoop/LxWxH mm 2720x2300x2600 2720x2400x2600 3000x2600x2800 3400x2700x2900 3600x2800x3000 3600x2800x3000 3900x3000x3300 4200x3200x3350
