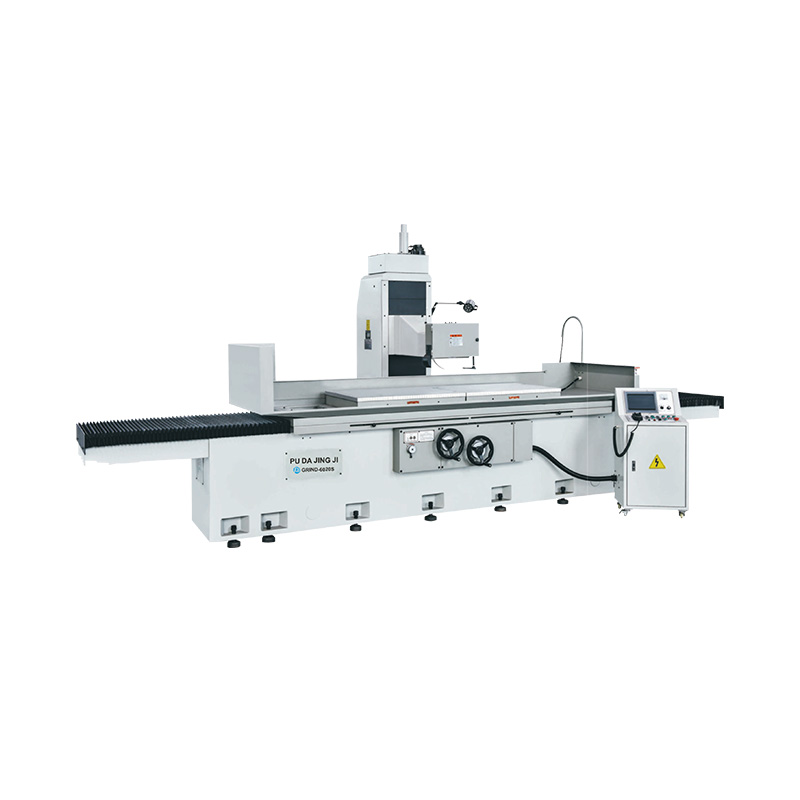

PD-620/715/720AHD Precision Molding Surface Grinder
  • PD-620/715/720AHD Precision Molding Surface Grinder

PD-620/715/720AHD Precision Molding Surface Grinder

1. The main castings of this machine are made of cast iron. After annealing, the internal stress is eliminated to ensure high precision, high rigidity, and prolong the life of the machine.
2. Wear-resistant resin sheet is affixed to the slideway of the
machine, and after precision scooping, it not only slides smoothly and is wear-resistant, it is most suitable for molding and grinding.
3. This machine adopts Taiwan's direct-coupled spindle and P4 grade super-precision roller bearings. It has low noise, high vibration and high torque at high speeds. It is most suitable for molding and grinding.

PREV: Precision Cnc Fixed Beam Gantry Milling Machine Series Next: PD-620/715/720AHR Precision Molding Surface Grinder
Projects Models Unit PD-620/715/720AHD PD-820AHR/AHD
Capabilities Table working area mm 1500x700 2000x800
Maximum left/right travel mm 1600 2230
Maximum forward and backward travel mm 760 860
Maximum distance from table surface to spindle centre mm 600(900op) 600(900op)
Maximum table weight kgs 1500 1500
Working table Table T-slot mmxN 16x3 16x5
Table speed m/min 7-25 7-25
Front and rear handwheel feed 1 frame mm 0.02 0.02
1 turn mm 5 5
Front and rear automatic feeding mm 0.5-12 0.5-12
Front and rear rapid traverse 50HZ mm/min 1250 1250
60HZ mm/min 1500 1500
Grinding Wheel Grinding wheel size mm Φ355x20-50x127 Φ335x20-50x127
Spindle speed 50HZ R.PM 1450 1450
60HZ R.PM 1740 1740
Upper and lower mechanism Upper handwheel feed 1 Grid mm 0.002 0.002
1 rotary mm 0.5 0.5
Automatic feed volume mm 0.005-0.04 0.005-0.04
Rapid traverse up and down mm/min 230 230
Motor Spindle motor HxP 10x4 10x4
Upper and lower Christine drive motor HxP 1/2x4 1/2x4
Hydraulic motor HxP 7.5x6 7.5x6
Flushing motor HxP 1/8x2 1/8x2
Front and rear drive motors HxP 1/4x6 1/4x6
Dimension Machine height mm 2400 2470
Floor space mm 5810x2800 6200x2800
Net weight kgs 7000 10000
Gross weight kgs 8000 11000
