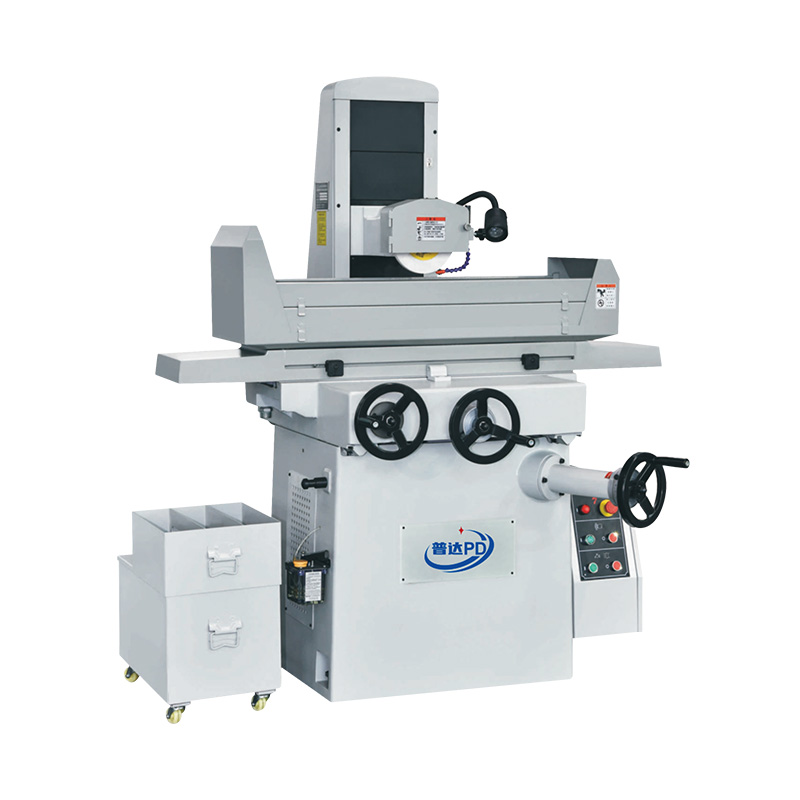

PD-250M Precision Molding Surface Grinder
  • PD-250M Precision Molding Surface Grinder

PD-250M Precision Molding Surface Grinder

1. The main castings of this machine are made of cast iron. After annealing, the internal stress is eliminated to ensure high precision, high rigidity, and prolong the life of the machine.
2. Wear-resistant resin sheet is affixed to the slideway of the
machine, and after precision scooping, it not only slides smoothly and is wear-resistant, it is most suitable for molding and grinding.
3. This machine adopts Taiwan's direct-coupled spindle and P4 grade super-precision roller bearings. It has low noise, high vibration and high torque at high speeds. It is most suitable for molding and grinding.

PREV: PD-250AH/AHR/AHD Precision Molding Surface Grinder Next: PD-X614/X618 Precision Molding Surface Grinder
Projects Models Unit PD-250M
Capabilities Table working area mm 460x200
Maximum left/right travel mm 540
Maximum forward and backward travel mm 260
Maximum distance from table surface to spindle centre mm 470
Maximum table weight kgs 100
Working table Table T-slot mmxN 14x1
Table speed m/min 7-25
Front and rear handwheel feed 1 frame mm 0.02
1 turn mm 4
Front and rear automatic feeding mm /
Front and rear rapid traverse 50HZ mm/min /
60HZ mm/min /
Grinding Wheel Grinding wheel size mm Φ205x6-20x31.75
Spindle speed 50HZ R.PM 2850
60HZ R.PM 3360
Upper and lower mechanism Upper handwheel feed 1 Grid mm 0.01
1 rotary mm 2
Automatic feed volume mm /
Rapid traverse up and down mm/min /
Motor Spindle motor HxP 2x2
Upper and lower Christine drive motor HxP /
Hydraulic motor HxP /
Vacuum motor HxP 3/4x2
Flushing motor HxP 1/8x2
Front and rear drive motors HxP /
Dimension Machine height mm 1775
Floor space mm 1800x1400
Net weight kgs 1100
Gross weight kgs 1300
