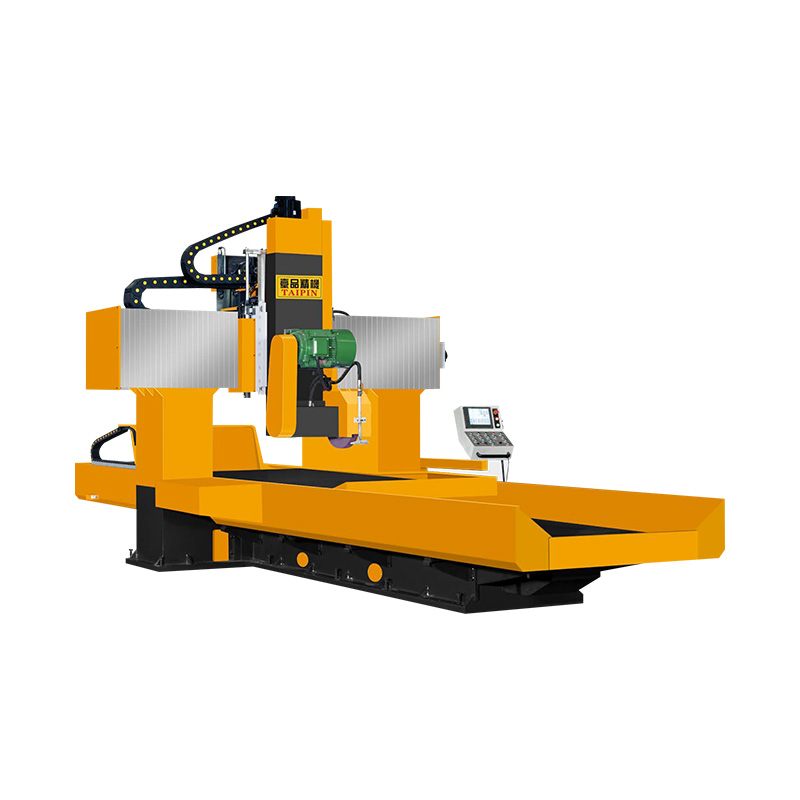

Cnc Gantry Surface Grinder Series

Cnc Gantry Surface Grinder Series

Application Field
Parts processing ofaviation, aerospace, ship and rail transit
Mold base processing
Mold embryo processing
Die steel processing, etc

Project/Model TPM-SK2518 TPM-SK4022 TPM-SK4026 TPM-SK6030
Workbench length 2500mm 4000mm 4000mm 6000mm
Workbench width 1500mm 1800mm 2200mm 2500mm
Spacing between two columns 1800mm 2200mm 2600mm 3000mm
Processing height 630mm 680mm 750mm 800mm
X axis speed 7-32m/min 7-32m/min 7-30m/min 7-30m/min
Y axis speed 0-5000mm/min 0-5000mm/min 0-5000mm/min 0-5000mm/min
Z axis speed 0-3000mm/min 0-3000mm/min 0-3000mm/min 0-3000mm/min
Hydrostatic grinding head motor power 22kw 22kw 22kw/30kw 22kw/3 0kW
Motor power of Taiwan hydraulic station 18.5kW 22kw 22.5kW 30kW
X axis cylinder piston rod diameter 50 70 70 85
Y axis servo motor 3kw 4.3kw 4.3kW 4.3kw
Z axis servo motor 3kw 4.3kw 4.3kw 4.3kw
CNC system Baoyuan/New Generation Baoyuan/New Generation Baoyuan/New Generation Baoyuan/New Generation
Electric pemmanent disk 2500x1500mm 4000x1800mm 4000x2200mm 6000x2500mm
Machine load with disk 7T 12T 15T 25T
Machine size(mm) 8100x3850x3900 11500x4500x4100 11500x4900x4200 15500x5300x4400
