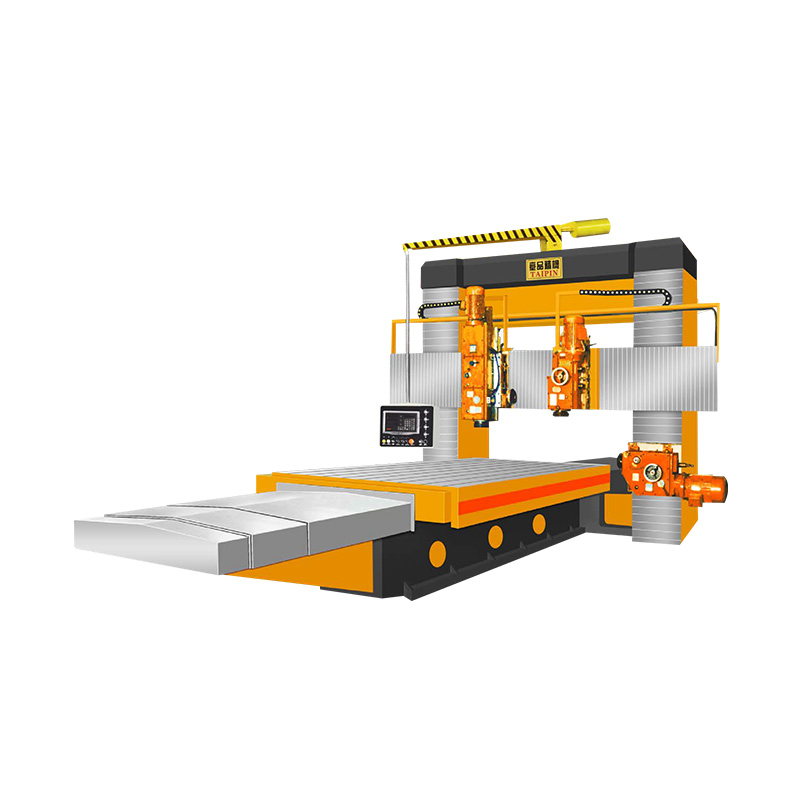

Gantry Boring And Miluing Machine Series
  • Gantry Boring And Miluing Machine Series

Gantry Boring And Miluing Machine Series

Application Field
Parts processing ofaviation, aerospace, ship and rail transit
Mold base processing
Mold embryo processing
Die steel processing, etc

PREV: Cnc Gantry Friction Stir Welding Series Next: Cnc Gantry Surface Grinder Series
Project/Model Unit TPX-2015 TPX-2519 TPX-4022 TPX-6025 TPX-8030
Workbench length mm 2000 2500 4000 6000 8000
Workbench width mm 1200 1500 1800 2000 2500
Spacing between two columns mm 1500 1900 2200 2500 3000
Processing height mm 1000 1200 1600 2000 2000
Beam guide width mm 450 500 500 600 700
Column guide rail width kw 440 450 500 600 700
End milling head power kw 7.5 11 11 Left (L)7.5
Right (R)11		 Left (L)11
Right (R)15
Side milling head power kw 7.5 7.5 7.5 11 11
Workbench motor power kw 3 5 7.5 11 18.5
Beam motor power kw 1.5 1.5 2.2 2.2 2.2
Beam lifting motor power kw 3 3 3 5.5 7.5
Moving speed of worktable mm/min 0~3000 0~3000 0~3000 0~2500 0~2500
Moving speed of vertical milling mm/min 0~1500 0~1500 0~1500 0~1500 0~1500
Beam/side milling lifting speed mm/min 0~750 0~750 0~750 0~750 0~750
Machine load T 6 10 15 22 30
Machine size L mm 6900 7200 10800 17000 21000
W mm 3000 3600 4100 5170 6100
H mm 3000 3500 4000 4850 4850
