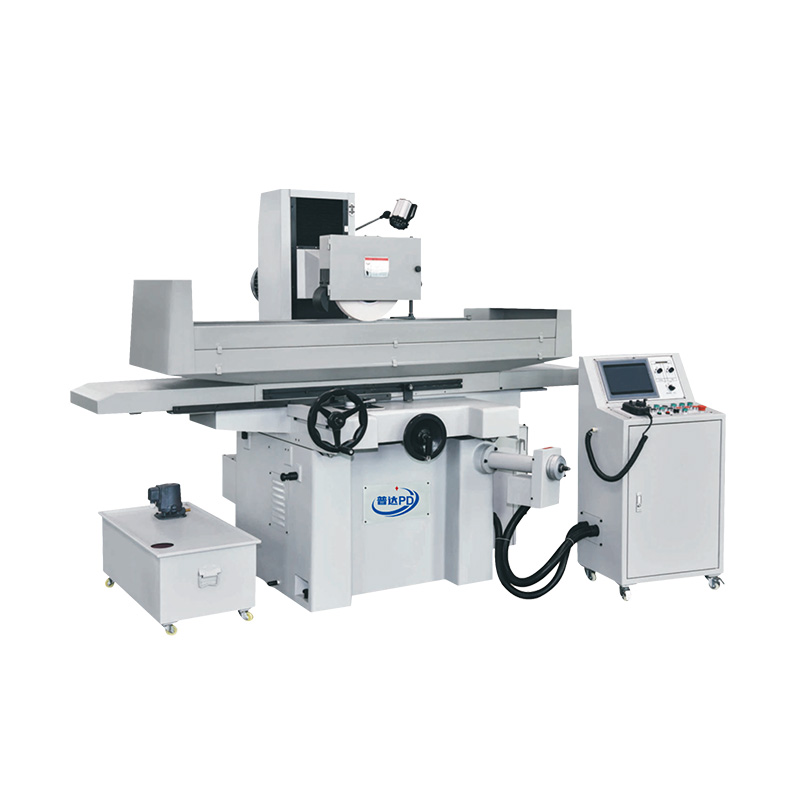

1. The main castings of this machine are made of cast iron. After annealing, the internal stress is eliminated to ensure high precision, high rigidity, and prolong the life of the machine.
2. Wear-resistant resin sheet is affixed to the slideway of the
machine, and after precision scooping, it not only slides smoothly and is wear-resistant, it is most suitable for molding and grinding.
3. This machine adopts Taiwan's direct-coupled spindle and P4 grade super-precision roller bearings. It has low noise, high vibration and high torque at high speeds. It is most suitable for molding and grinding.
Projects | Models | Unit | PD-4080AHD | |
Capabilities | Table working area | mm | 800x400 | |
Maximum left/right travel | mm | 920 | ||
Maximum forward and backward travel | mm | 450 | ||
Maximum distance from table surface to spindle centre | mm | 580 | ||
Maximum table weight | kgs | 700 | ||
Working table | Table T-slot | mmxN | 14x3 | |
Table speed | m/min | 5-25 | ||
Front and rear handwheel feed | 1 frame | mm | 0.02 | |
1 turn | mm | 5 | ||
Front and rear automatic feeding | mm | 0.1-10 | ||
Front and rear rapid traverse | 50HZ | mm/min | 990 | |
60HZ | mm/min | 1190 | ||
Grinding Wheel | Grinding wheel size | mm | Φ355x20-40x127 | |
Spindle speed | 50HZ | R.PM | 1450 | |
60HZ | R.PM | 1740 | ||
Upper and lower mechanism | Upper handwheel feed | 1 Grid | mm | 0.001 |
1 rotary | mm | 0.5 | ||
Automatic feed volume | mm | 0.005-0.025 | ||
Rapid traverse up and down | mm/min | 230 | ||
Motor | Spindle motor | HxP | 7.5x3 | |
Upper and lower Christine drive motor | HxP | 80W | ||
Hydraulic motor | HxP | 3x6 | ||
Flushing motor | HxP | 1/8x2 | ||
Front and rear drive motors | HxP | 40W | ||
Dimension | Machine height | mm | 1880 | |
Floor space | mm | 3600x2750 | ||
Net weight | kgs | 2800 | ||
Gross weight | kgs | 3000 |
