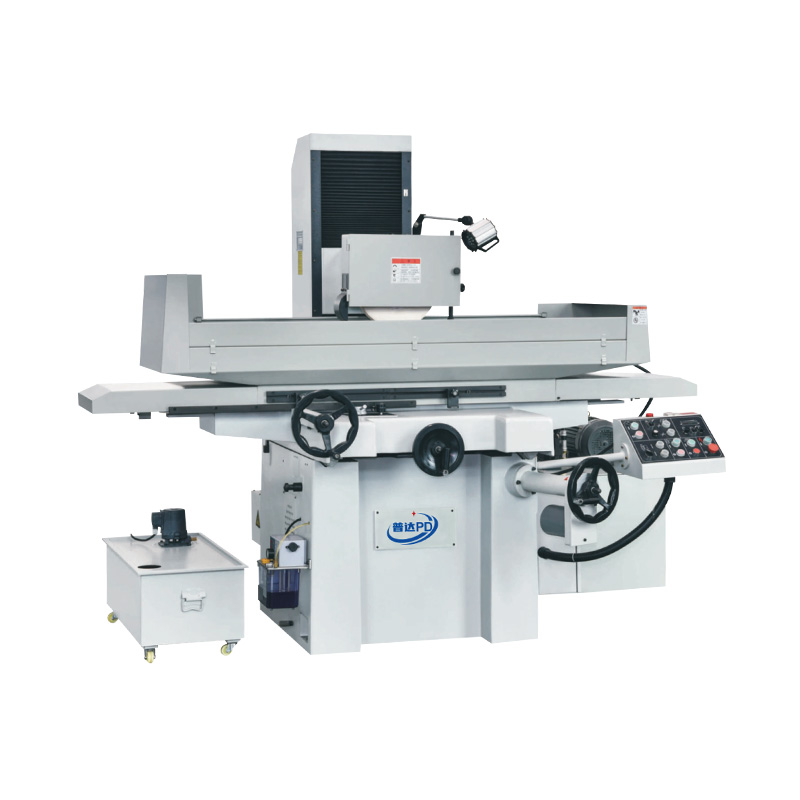

PD-4080AH/AHR/AHD Precision Molding Surface Grinder
  • PD-4080AH/AHR/AHD Precision Molding Surface Grinder

PD-4080AH/AHR/AHD Precision Molding Surface Grinder

1. The main castings of this machine are made of cast iron. After annealing, the internal stress is eliminated to ensure high precision, high rigidity, and prolong the life of the machine.
2. Wear-resistant resin sheet is affixed to the slideway of the
machine, and after precision scooping, it not only slides smoothly and is wear-resistant, it is most suitable for molding and grinding.
3. This machine adopts Taiwan's direct-coupled spindle and P4 grade super-precision roller bearings. It has low noise, high vibration and high torque at high speeds. It is most suitable for molding and grinding.

PREV: PD-510AHR/AHD PD-512AHR/AHD Precision Molding Surface Grinder Next: PD-4080AHD Precision Molding Surface Grinder
Projects Models Unit PD-4080AH/AHR/AHD
Capabilities Table working area mm 800x400
Maximum left/right travel mm 920
Maximum forward and backward travel mm 450
Maximum distance from table surface to spindle centre mm 580
Maximum table weight kgs 700
Working table Table T-slot mmxN 14x3
Table speed m/min 5-25
Front and rear handwheel feed 1 frame mm 0.02
1 turn mm 5
Front and rear automatic feeding mm 0.1-10
Front and rear rapid traverse 50HZ mm/min 990
60HZ mm/min 1190
Grinding Wheel Grinding wheel size mm Φ355x20-40x127
Spindle speed 50HZ R.PM 1450
60HZ R.PM 1740
Upper and lower mechanism Upper handwheel feed 1 Grid mm 0.001
1 rotary mm 0.5
Automatic feed volume mm 0.005-0.025
Rapid traverse up and down mm/min 230
Motor Spindle motor HxP 7.5x3
Upper and lower Christine drive motor HxP 80W
Hydraulic motor HxP 3x6
Flushing motor HxP 1/8x2
Front and rear drive motors HxP 40W
Dimension Machine height mm 1880
Floor space mm 3600x2750
Net weight kgs 2800
Gross weight kgs 3000
