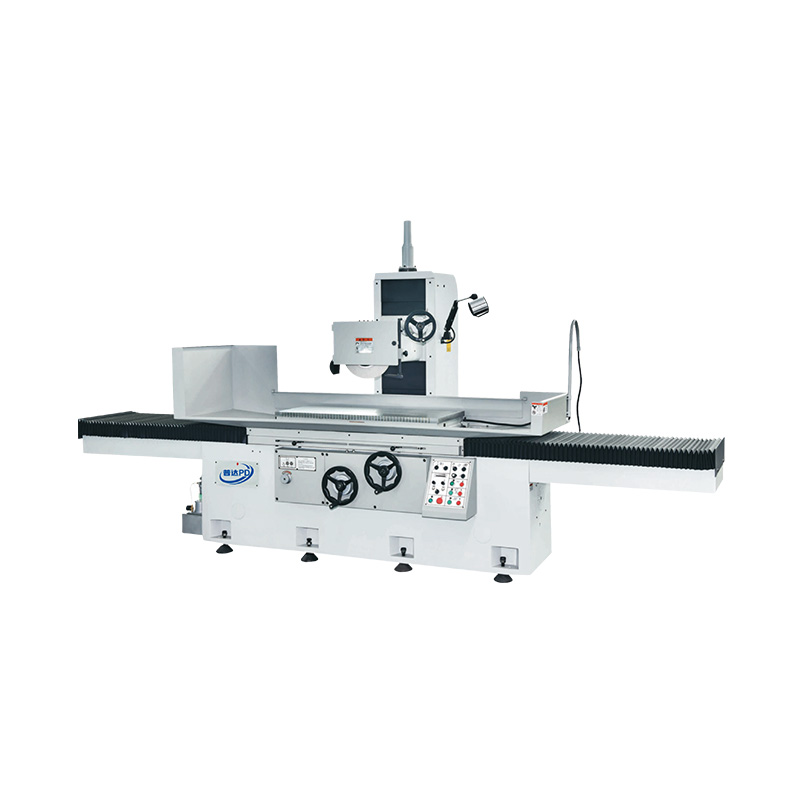

PD-510AHR/AHD PD-512AHR/AHD Precision Molding Surface Grinder
  • PD-510AHR/AHD PD-512AHR/AHD Precision Molding Surface Grinder

PD-510AHR/AHD PD-512AHR/AHD Precision Molding Surface Grinder

1. The main castings of this machine are made of cast iron. After annealing, the internal stress is eliminated to ensure high precision, high rigidity, and prolong the life of the machine.
2. Wear-resistant resin sheet is affixed to the slideway of the
machine, and after precision scooping, it not only slides smoothly and is wear-resistant, it is most suitable for molding and grinding.
3. This machine adopts Taiwan's direct-coupled spindle and P4 grade super-precision roller bearings. It has low noise, high vibration and high torque at high speeds. It is most suitable for molding and grinding.

PREV: PD-620/715/720AHR Precision Molding Surface Grinder Next: PD-4080AH/AHR/AHD Precision Molding Surface Grinder
Projects Models Unit PD-510AHR/AHD PD-512AHR/AHD
Capabilities Table working area mm 1000x500 1200x500
Maximum left/right travel mm 1140 1300
Maximum forward and backward travel mm 540 540
Maximum distance from table surface to spindle centre mm 570(700op) 600
Maximum table weight kgs 800 800
Working table Table T-slot mmxN 14x3 14x3
Table speed m/min 5-25 5-25
Front and rear handwheel feed 1 frame mm 0.02 0.02
1 turn mm 5 5
Front and rear automatic feeding mm 0.5-12 0.5-12
Front and rear rapid traverse 50HZ mm/min 1250 1250
60HZ mm/min 1500 1500
Grinding Wheel Grinding wheel size mm Φ355x20-40x127 Φ355x20-40x127
Spindle speed 50HZ R.PM 1450 1450
60HZ R.PM 1740 1740
Upper and lower mechanism Upper handwheel feed 1 Grid mm 0.002 0.002
1 rotary mm 0.5 0.5
Automatic feed volume mm 0.005-0.04 0.005-0.04
Rapid traverse up and down mm/min 230 230
Motor Spindle motor HxP 7.5x4 7.5x4
Upper and lower Christine drive motor HxP 1/2x4 1/2x4
Hydraulic motor HxP 3x6 3x6
Flushing motor HxP 1/8x2 1/8x2
Front and rear drive motors HxP 1/4x6 1/4x6
Dimension Machine height mm 2400 2450
Floor space mm 4445x2200 4700x2300
Net weight kgs 5000 5000
Gross weight kgs 6000 6000
