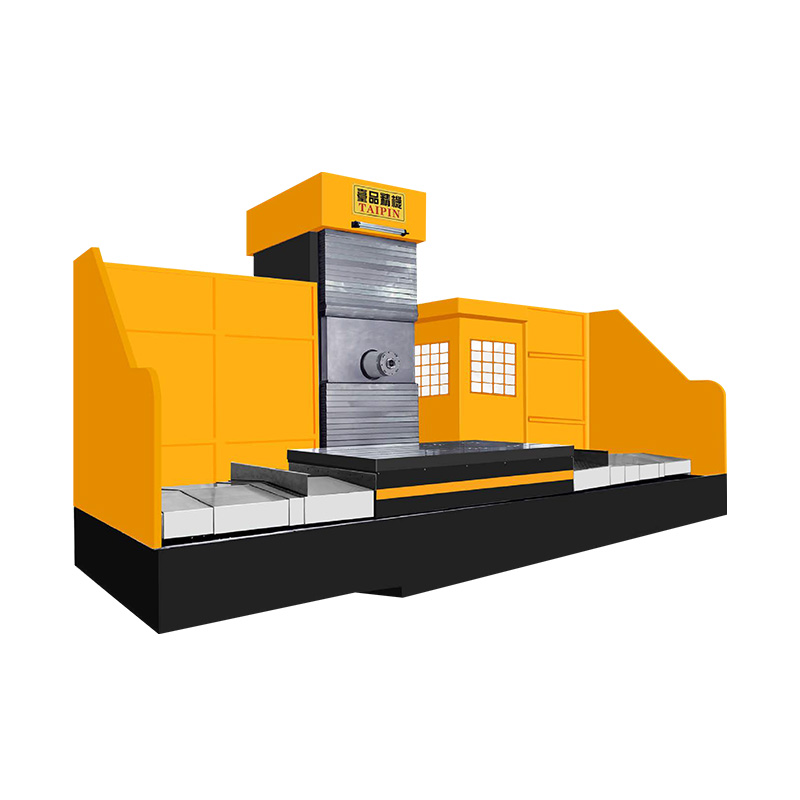

Powerful Horizontal Cnc Frame Opening Machine Series
  • Powerful Horizontal Cnc Frame Opening Machine Series

Powerful Horizontal Cnc Frame Opening Machine Series

Application Field
Gear type power head, high rigidity design
Mold and boring processing
Medium and small molds, mold blank frame opening processing, etc.

PREV: CNC Double-End Side Milling Machine Series Next: Single-Column Finishing Milling Machine Series
Project/Model Unite TP-1810W TP-2212W TP-2516W
Workbench Table size (X-axis direction) mm 1800 2200 2500
Table size (Z-axis direction) mm 1100 1300 1500
Maximum load-bearing capacity of table kg 6000 8000 10000
Stroke X-axis travel (longitudinal movement of the worktable mm 1800 2200 2500
Y-axis travel (vertical movement of the spindle) MM 1000 1200 1600
Z-axis travel(transverse movement of the spindle) mm 600 800 800
Spindle center to work surface mm 100-1100 100-1300 100-1700
Spindle Spindle taper/pull stud - BT-50-45° BT-50-45° BT-50-45°
Spindle power kw 18.5/22 18.5/22 18.5/22
Spindle drive mode RPM Full gear 3000 rpm
Express X axis rapid feedrate m/mi 10 10 10
Y axis rapid feedrate m/mir 10 10 10
Z axis rapid feedrate m/mir 8 8 8
Minimum feed mm 0.001 0.001 0.001
Electric Standard system - FANUC FANUC FANUC
Electric capacity kw 50 50 60
Size Machine height mm 3800 3845 4200
Land area mm 6000x5400 6800x5700 6000x4500
