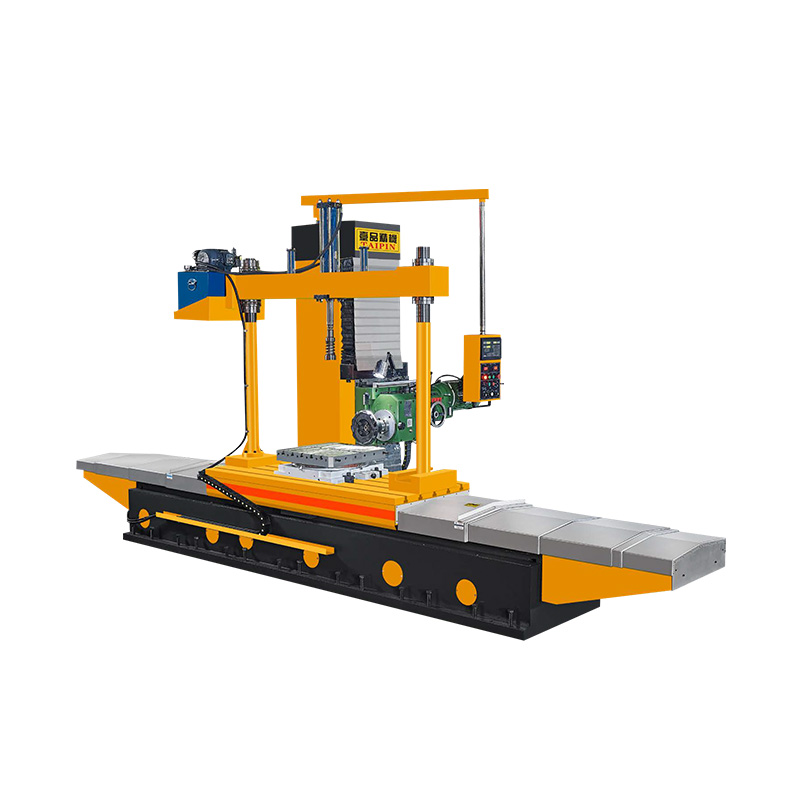

Single-Column Finishing Milling Machine Series
  • Single-Column Finishing Milling Machine Series

Single-Column Finishing Milling Machine Series

Application Field
Parts processing ofaviation, aerospace, ship and rail transit
Mold base processing
Mold embryo processing
Die steel processing, etc

PREV: Powerful Horizontal Cnc Frame Opening Machine Series Next: Precision Cnc Fixed Beam Double-End Gantry Milling Machine Series
Project/Model Unit TP-2080A TP-2512A TP-3016A TP-4020A
Workbench length mm 2000 2500 3000 4000
Workbench width mm 800 1200 1600 2000
Processing height mm 800 1200 1500 1500
Taiwan milling head power HP 12.5/15 12.5/15 12.5/15 12.5/15
Workbench motor kw 3.7kW servo 4.5kW servo 5kW servo 7.5kW servo
Milling head lifting motor kw 1.5kW frequency conversion
Digital display ruler mm Three coordinates
Cutter diameter mm 250 250 250 250
Rotary table mm 600x600 800x800 1000x1000 1000x1000
Hydraulic cylinder gantry mm 2000x800(H) 2500x1200(H) 3000x1500(H) 4000x1500(H)
Machine load T 8 13 15 25
Machine size L mm 5900 7200 8000 10000
W mm 1760 2100 2700 3200
H mm 2500 3000 3600 3600
