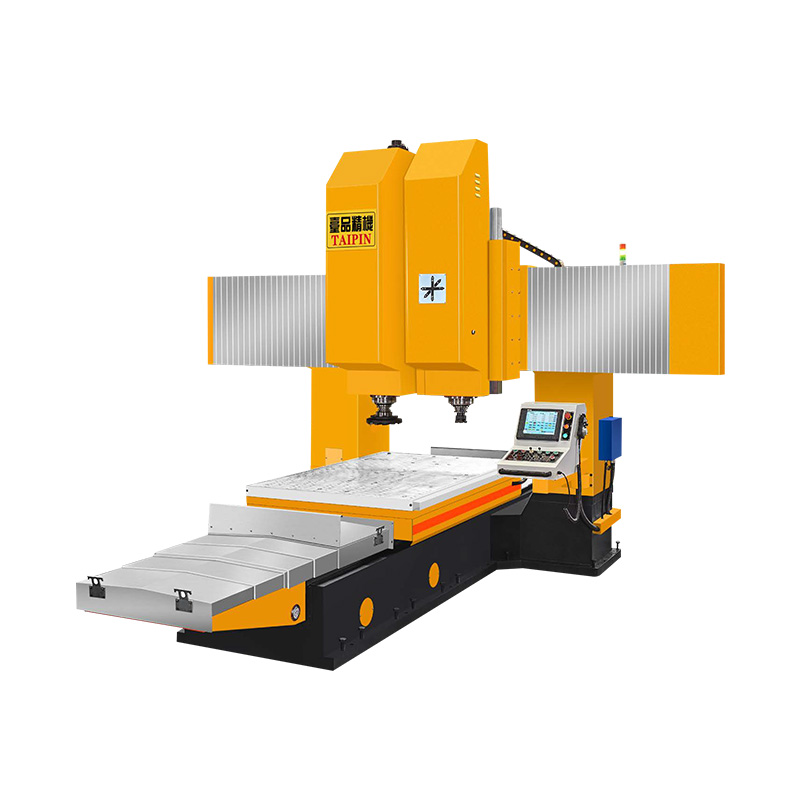

Precision Cnc Fixed Beam Double-End Gantry Milling Machine Series

Precision Cnc Fixed Beam Double-End Gantry Milling Machine Series

Application Field
Parts processing ofaviation, aerospace, ship and rail transit
Mold base processing
Mold embryo processing
Die steel processing, etc

Project/Model TP-2015NC TP-2519NC TP-3022NC TP-4026NC
Workbench length Double head
Workbench width 2000mm 2500mm 3000mm 4000mm
Spacing between two columns 1200mm 1500mm 1800mm 2200mm
Processing height 1500mm 1900mm 2200mm 2600mm
X axis, Y axis speed 480mm 580mm 680mm 800mm
Z axis speed 0-5000 mm/min 0-5000 mm/min 0-5000 mm/min 0-5000 mm/min
Rough milling servo motor 0-3000 mm/min 0-3000 mm/min 0-3000 mm/min 0-3000 mm/min
Precision milling servo motor 30kw 30kw 30kw 30kw
X axis servo motor 11kw 11kw 15kw 15kw
Y axis servo motor 2.9kw 4.5kw 5.5kw 5.5kw
Z axis servo motor 2.3kw 2.9kw 2.9kw 2.9kw
CNC system 2.36kw/2.36kw 2.36kw/2.36kw 3kw/3kw 3kw/3kw
Electric pemmanent disk Baoyuan/new generation
Machine load with disk 5T 8T 12T 18T
Machine size(mm) 6200x4200x3500 7200x4600x3600 8200x5000x3800 10500x5500x4000
